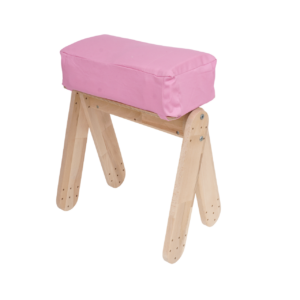

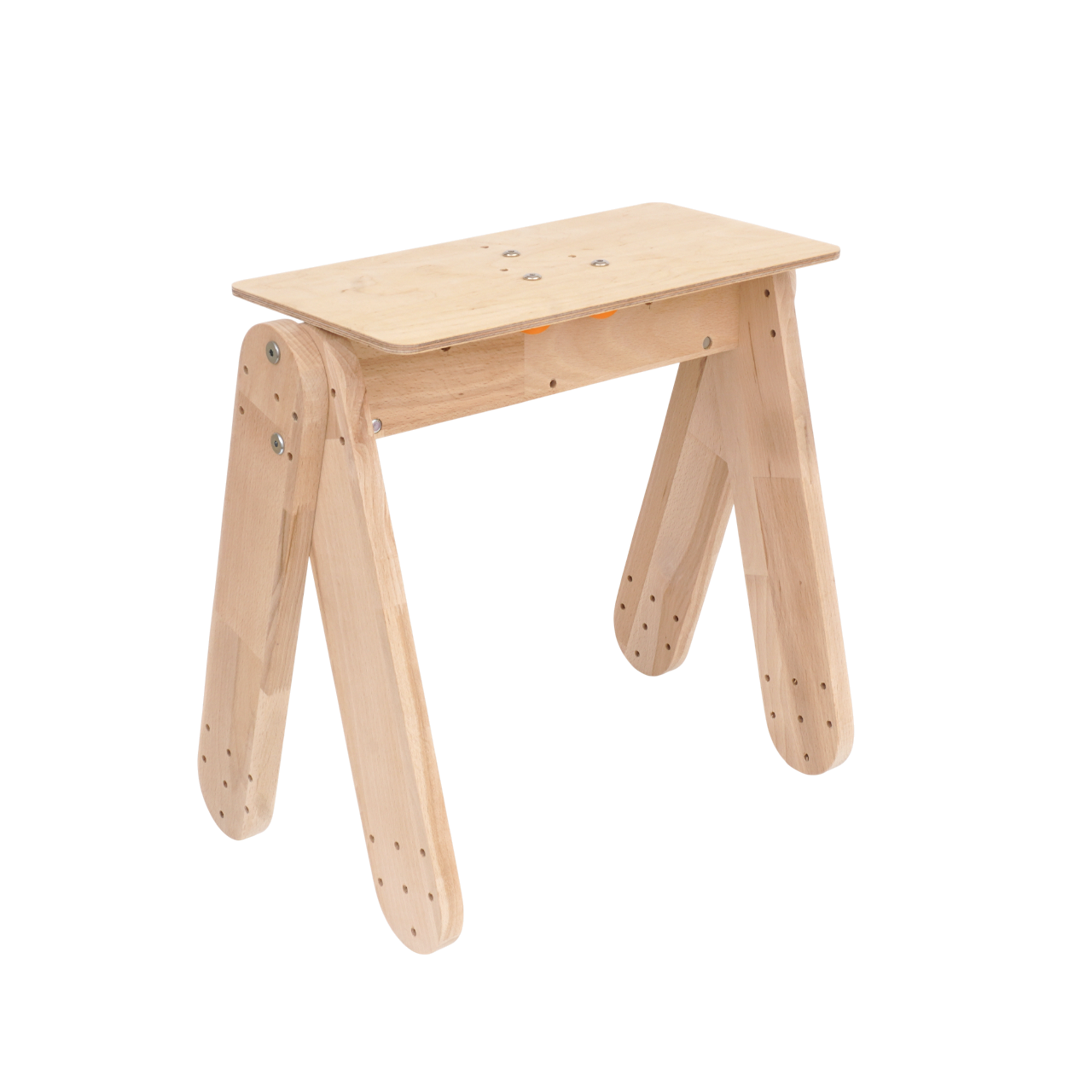

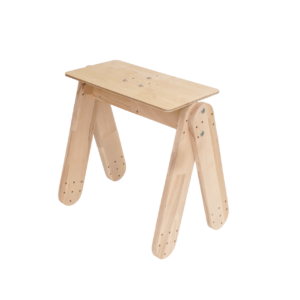

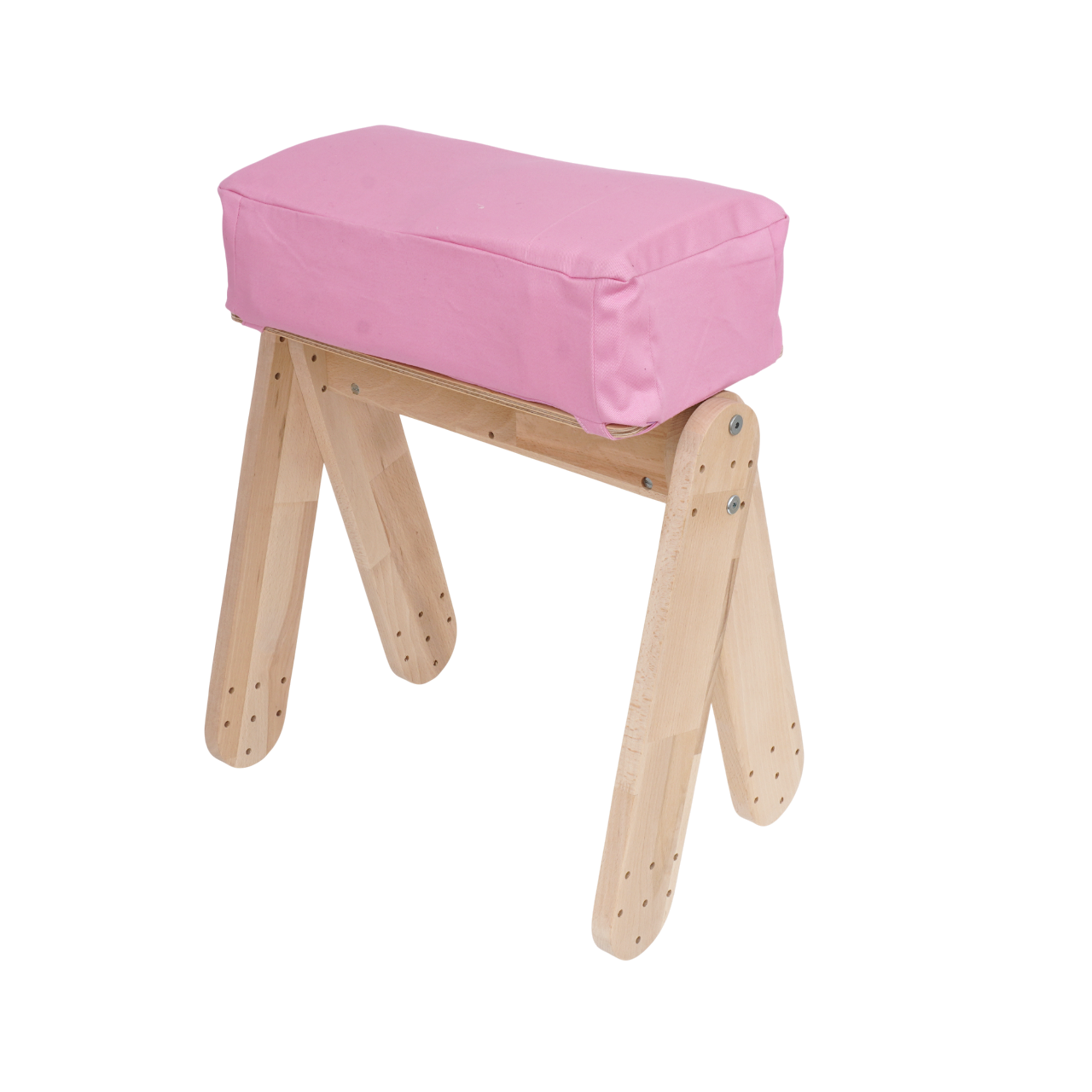

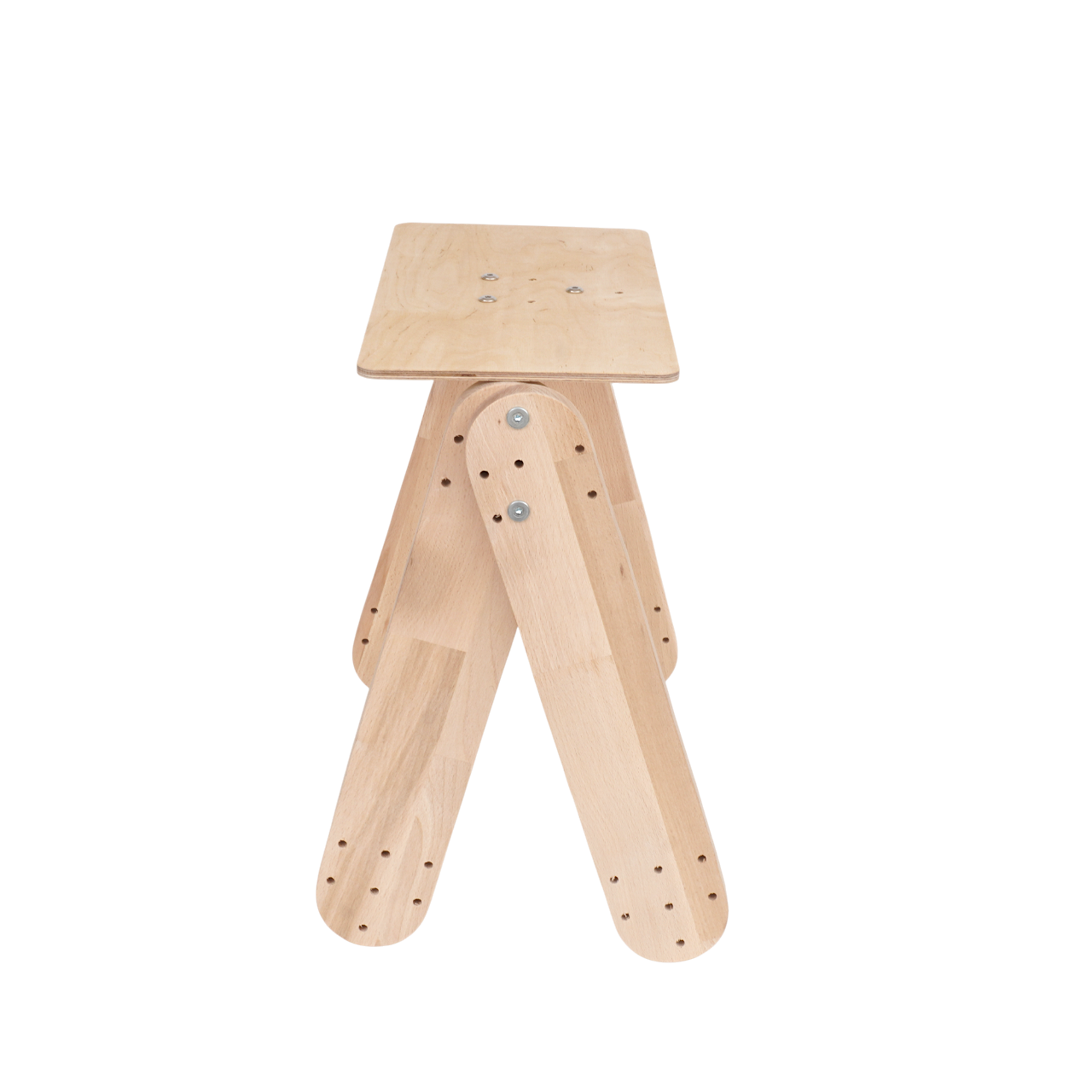

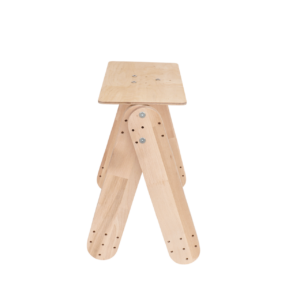

‘V-Stool‘ is a simple stool that is particularly suitable as a leg rest for armchairs.
Status: Rough prototype/concept
Design info
Set stats info
- 1 prototype
- 0 makes (add yours)
- 0 products
Context info
- A-Stool is part of the Flappy World ⤤
On parts and builds
- It needs strong parts. The board is ideally thicker than the board of the prototype in these pictures.
- Assembly ↓
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- All makes shown in this post were created by the designer. → Add your make.
- Disclaimer
Universal parts
V-Stool
Small Trestle (Subassembly)

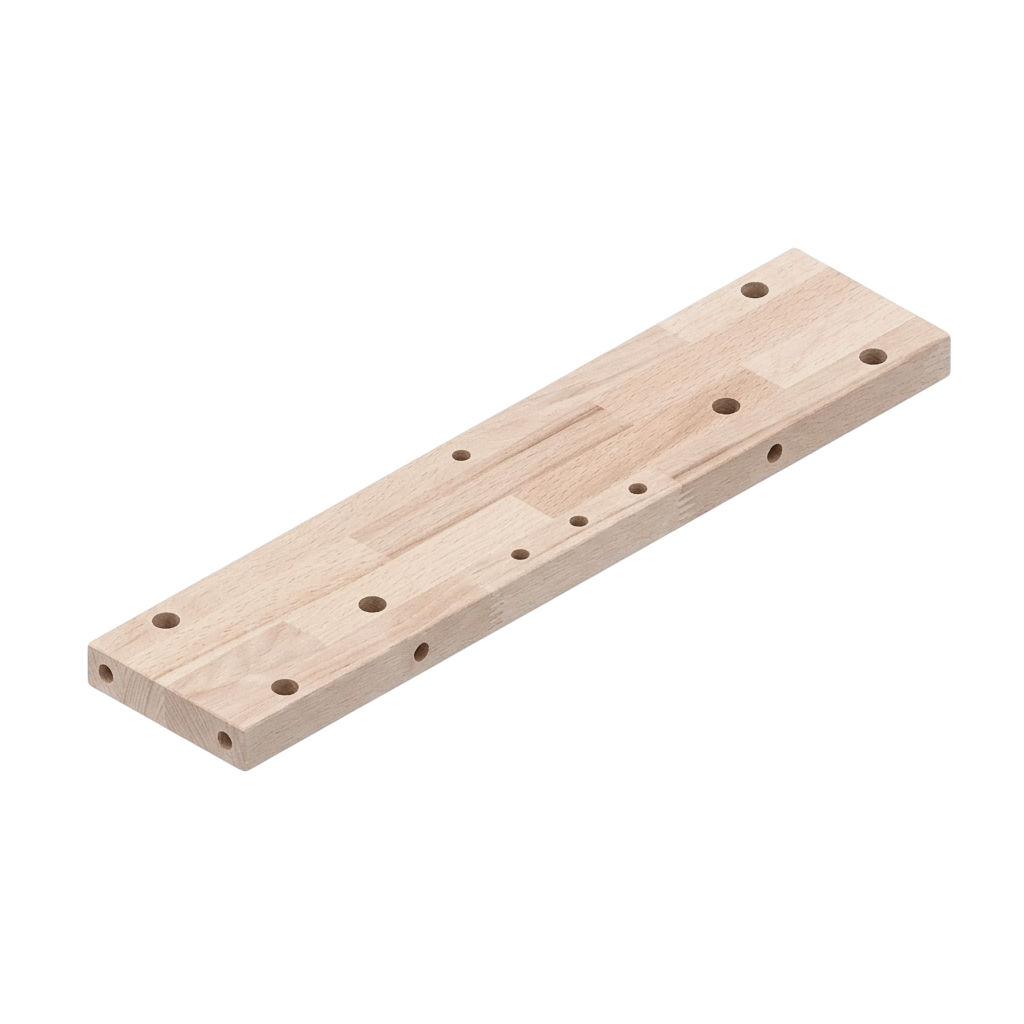

127.1 – “Flappy beam” 360x80x18mm

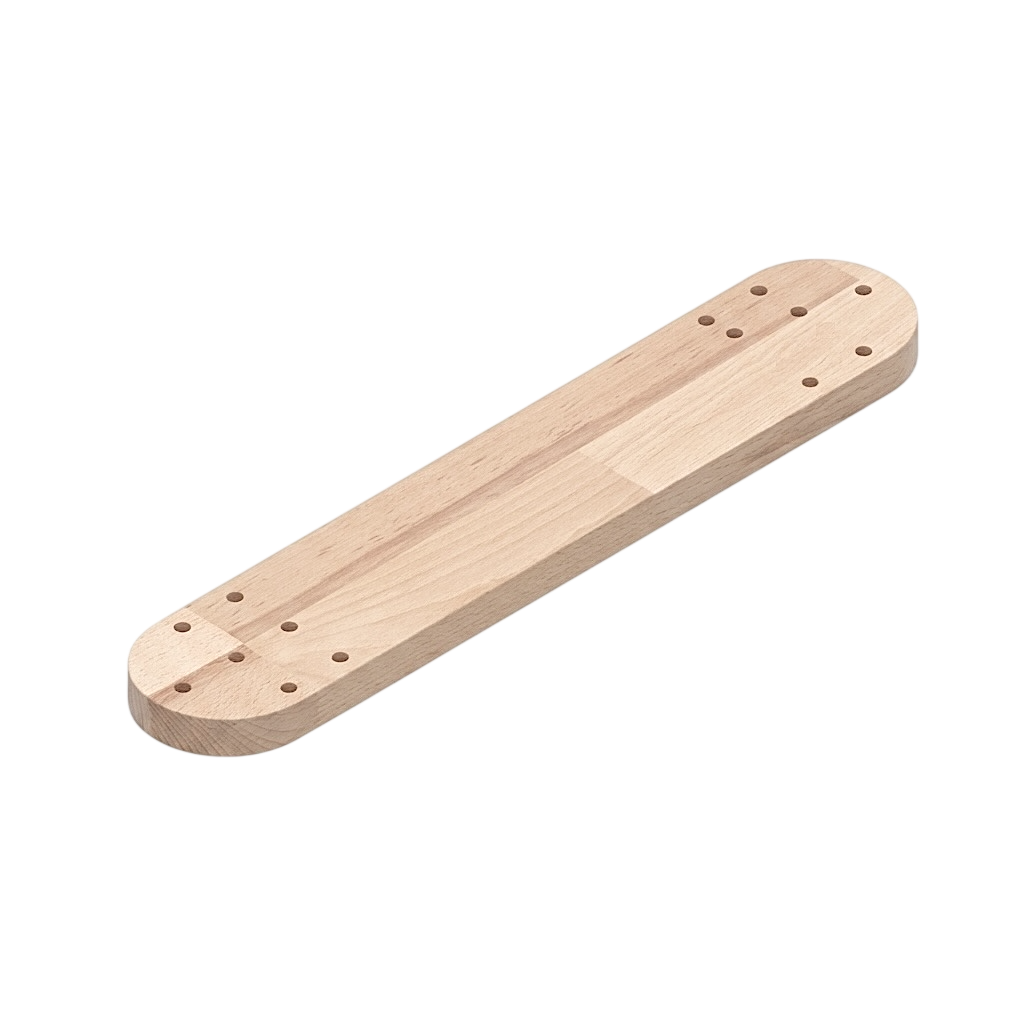

126.1 – “Flap” board ~420x80x18mm
125.3 – Foam small 400x200x50mm
124.3 – Pocket small 400x200x100mm
115.3 – 2 corner bracket modified Round +
115.2 – 2 corner bracket modified Round, M6, 15mm to edge
115.1 – 2 corner bracket, M6, 15mm to edge
087.1 – M6 washer 20mm
082.2 – M6 bolt 70mm
082.1 – M6 bolt 50mm
081.2 – Board ~210x390mm
072.1 – Spacer ~15mm high
030.1 – M6 bolt ~30mm
029.1 – M6 round nut
Note: This set has more than one model. Not all parts in the list are required to assemble each version.
Note: There is more than one way to assemble this model. Not every part in the list ist required for each way.
