Set #081
Parts list
Parts appearing in this set
158.1 – Rail Bracket 73x73mm
147.2 – Board 690x330x16mm
142.6 – Board 330x330mm, ⌀10mm holes
141.1 – Rail ~73x30x2mm
134.1 – 4 corner bracket Round
114.2 – 3 corner bracket modified Round +
095.7 – 690mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.6 – 330mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.5 – 210mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.1 – 30mm rod M6 insert, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
088.2 – M6 sleeve nut ~16mm
082.1 – M6 bolt 50mm
070.1 – Rope clip 2mm
063.1 – Plate 210x330mm
047.1 – Tube ⌀6mm, 18mm

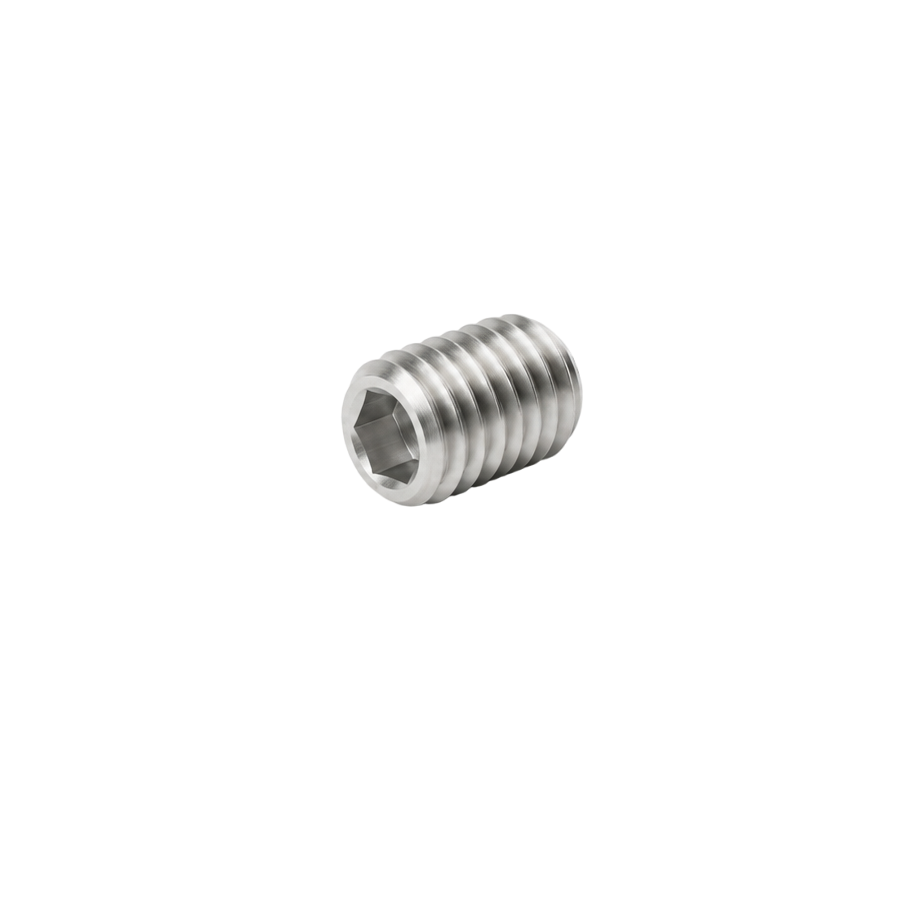

046.1 – M3 set screw 16mm
030.2 – M6 bolt 15mm

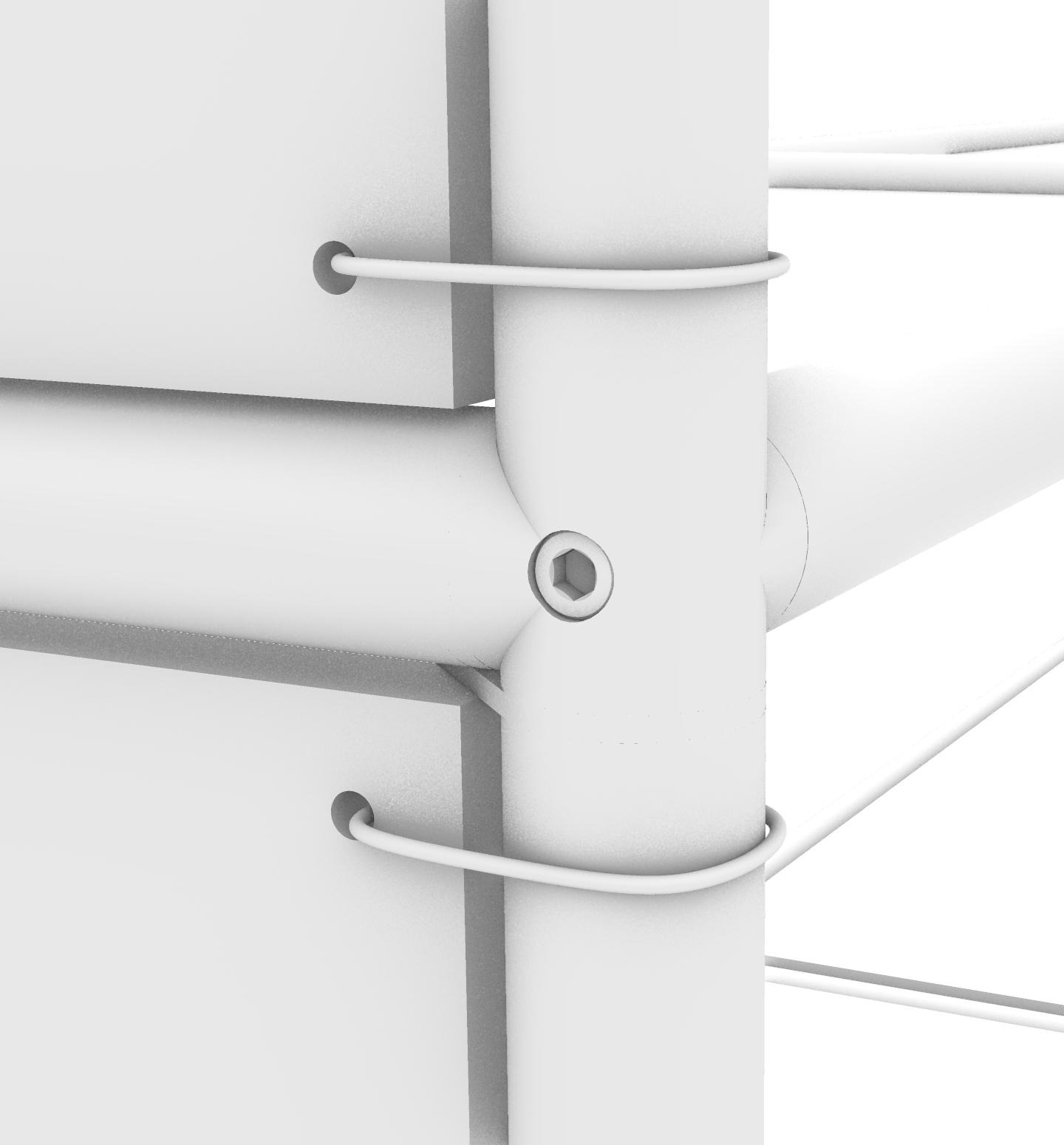

018.2 – Durable string ⌀ 1mm

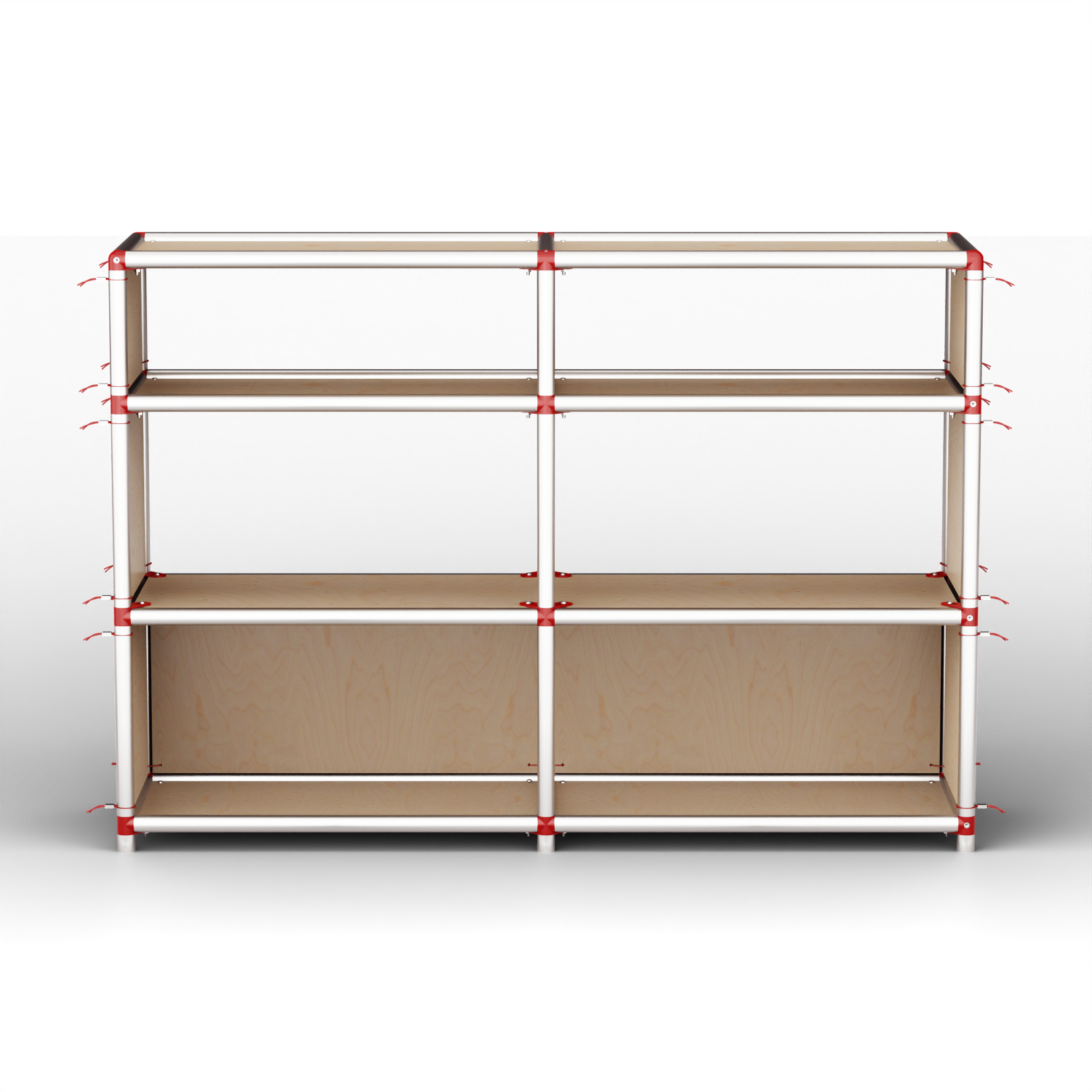

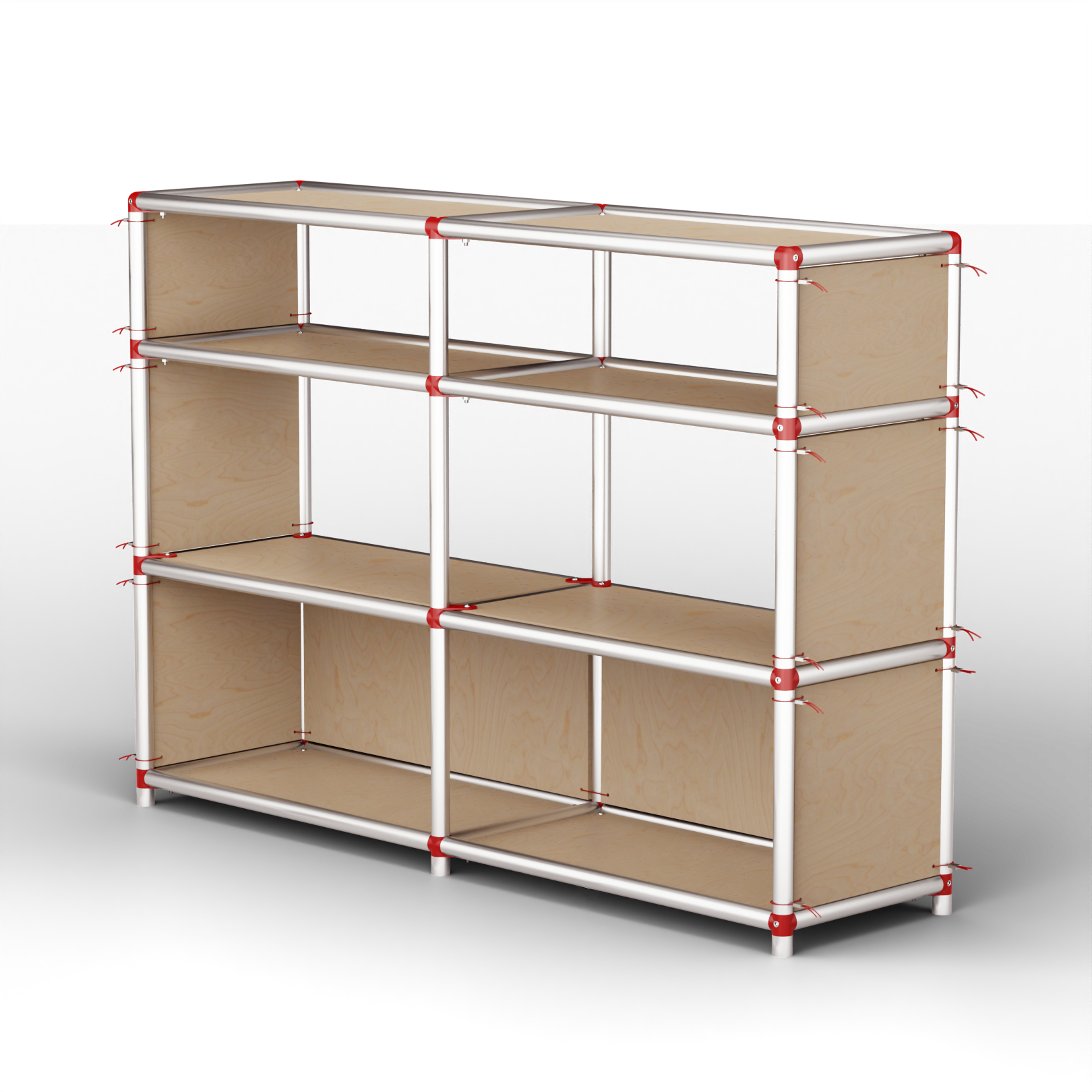

Regal Rope
‘Regal rope‘ is a wide shelf that cheers for green energy solutions.
Status: Digital Prototype.
Set info
Set No #081
Context Info
- This is a Node World set
Meta info
- This set was shared via Email
- Disclaimer
This set is part of Ikegos Node World. A subsystem within Ikego.
