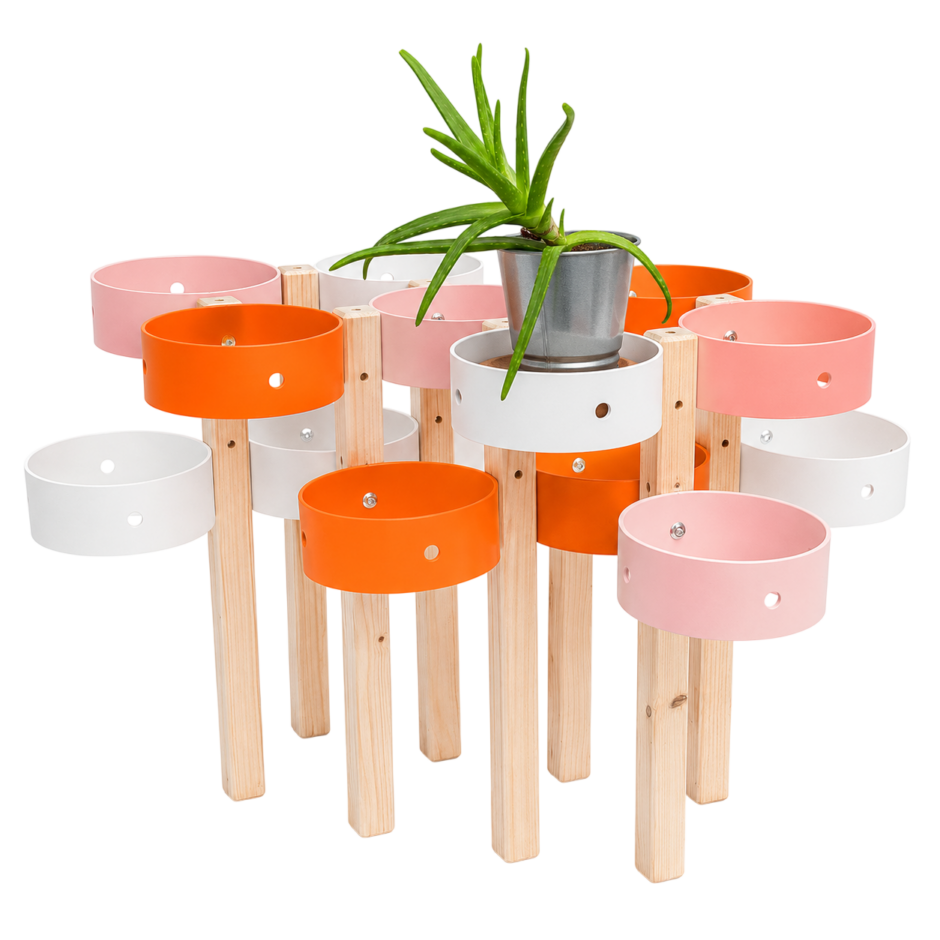

‘Plant Podest‘ is an infinitely extendable shelf for placing flower pots.
Status: Rough prototype/concept
Design info
On parts & builds
- The parts list has M6 and M4 bolts. Chose what you like or have. You don’t need both.

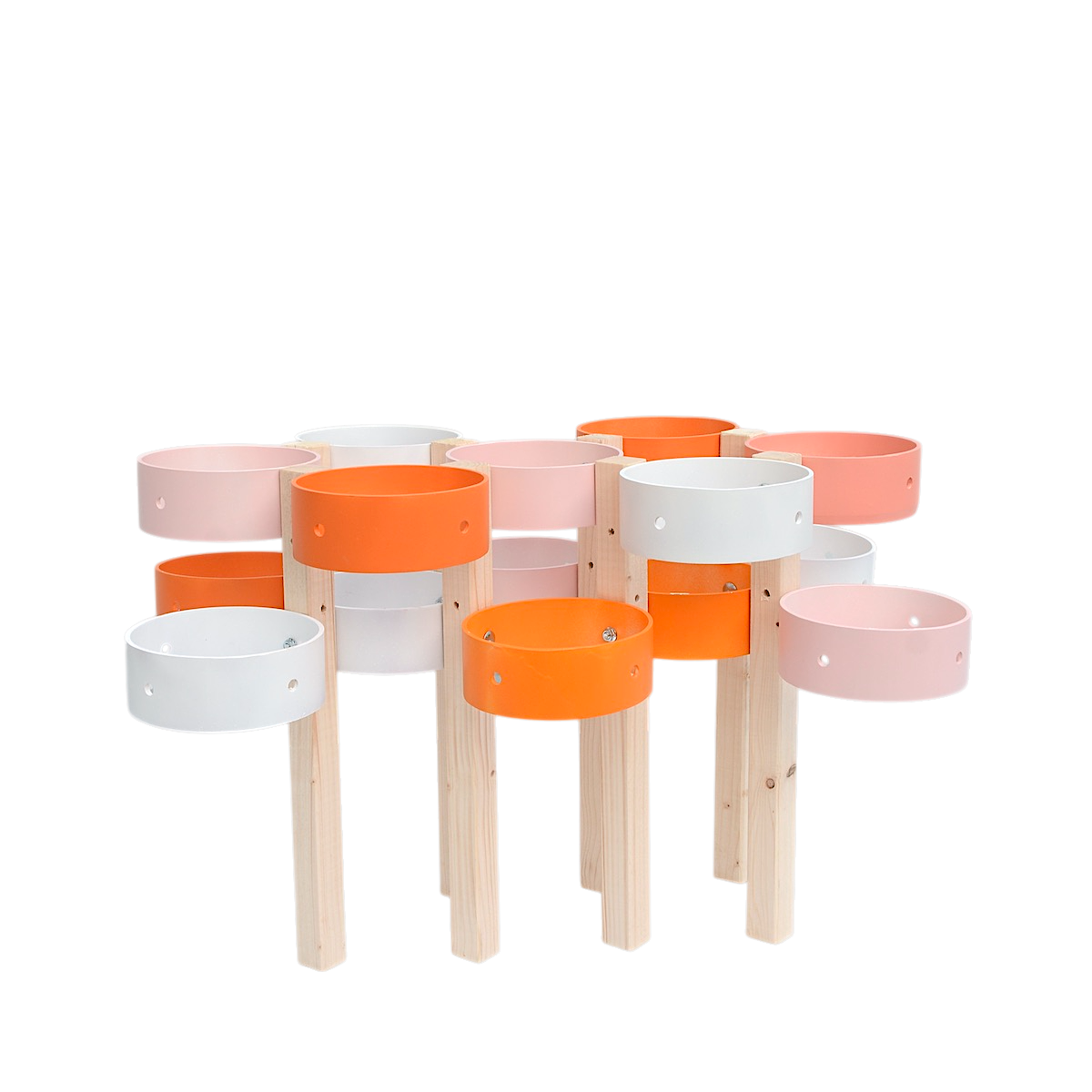

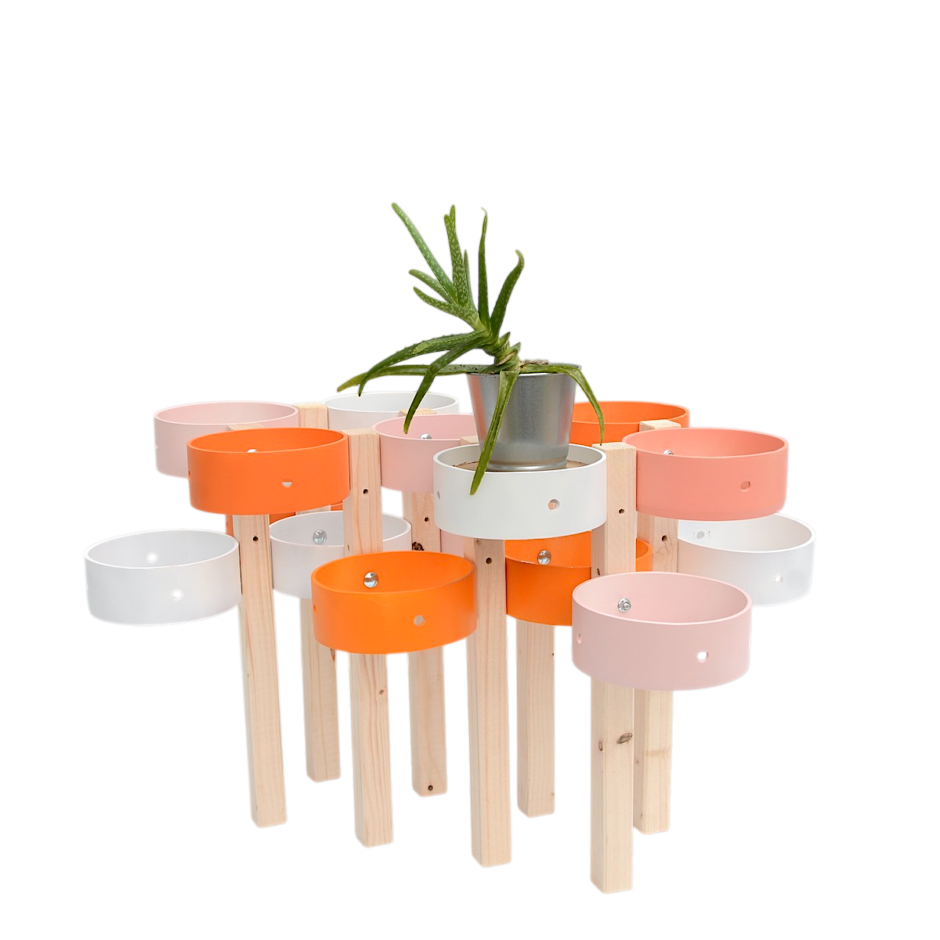

- The shots show a prototype where some rings are only attached to one beam. This does not work of course. The pics were shot in a rush. For the real design each ring need to be connected to at least two beams that are right next to each other and not just across from each other (see icons)
Meta info
- Visit the → original post by the designer for more pics and infos. (op_backup.pdf)
- All makes shown in this post were created by Audrey Burnard in collaboration with Mifactori → Add a make.
- Pictures by Audrey Burnard & Mifactori, cc-by-4.0
- Disclaimer
Universal parts
in this set
Plant Podest
107.1 – Beam 450x30x30mm
089.1 – M6 nut
087.1 – M6 washer 20mm
086.2 – M4 bolt 50mm
082.1 – M6 bolt 50mm
069.1 – M4 washer 15mm
051.2 – Domed washer for KG pipes, ⌀30mm
051.1 – Saddle washer for KG pipes, ⌀30mm
048.2 – Tube 60mm ⌀152mm
038.1 – Insert for Tubes inner ⌀ 152mm
005.2 – Disk 151,5 mm 13 holes
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
