‘Vito Boxbox‘ is a simple storage box. Upgrade it to have wheels, handles or a lid.
Status: Rough PROTOTYPES
Parts list
click to open the →
Available at
Globally available:
- as → local make find a local local handyman to make it for you
- from → Max of Materialogic (made on demand, shipping from Germany)
Locally ⚑ available in:
-
Oh no… sorry, no regional seller for this model yet. Sign up to our Newsletter ↓ to get notified when new sellers in your region are added. | Do you want to make and sell this? Add your store.
Ikego’s Newsletter
Hear about new models, sellers, opportunities and more. Join today.
↑
Design info
Set stats: 1 prototype, 0 makes, 0 products info
On parts & builds

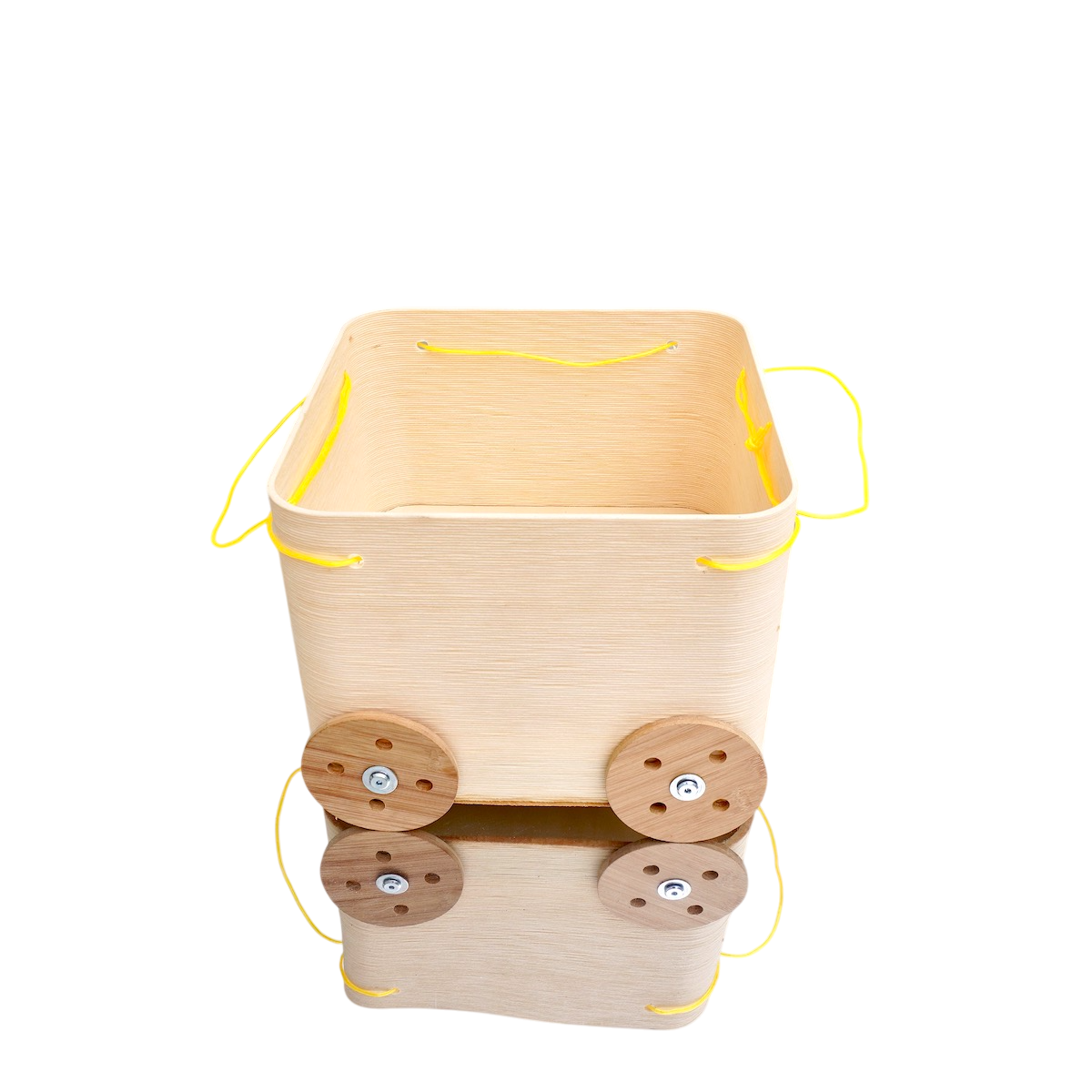

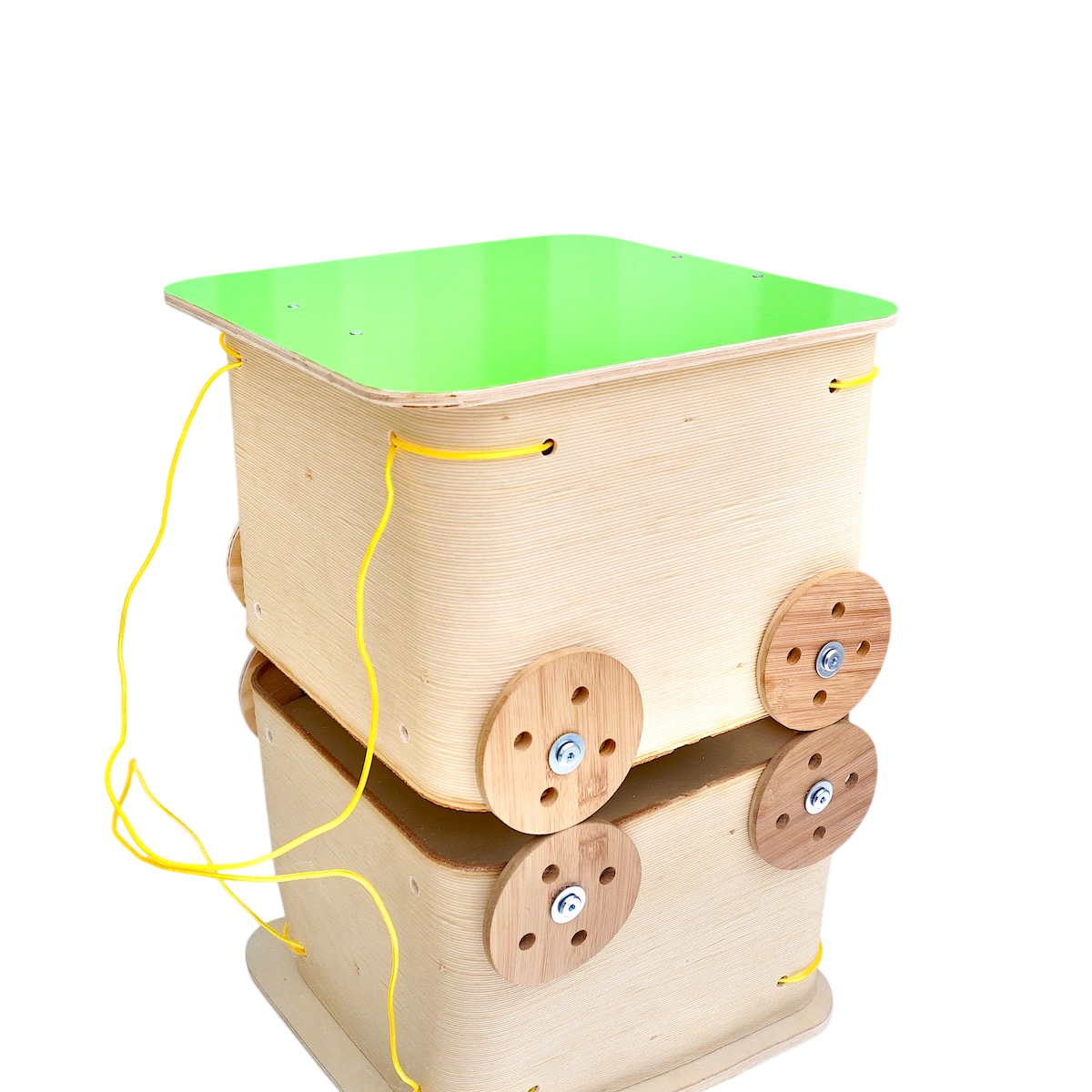

- You can have it with or without wheels, with or without a lid and with or without a handlebar, as shown in the pictures.
- The board on the bottom rests only on the nuts of the bolts that go into the side of the VITO box.
- The beads on the lid are there to prevent the lid from sliding away.
- If the VITO box is well made, you can even sit on it. It is basically also a stool.
- Wheel assembly: See the workshop picture above. The wheel runs on two M6 nuts. The order is: nut|washer|box|washer|nut|nut|washer|head of bolt. This is not very elegant, but it works. But it can easily be improved. If you want to go with the solution below you should replace the nuts with lock nuts.
- From a happy user: “We use the Vito Box to store our children’s toys under the bed (solution without wheels). A perfect solution that looks good and works well”.
Meta info
- Visit the original post by the designer for more pics and infos. Original post backup (pdf)
- All makes shown in this post were created by Mifactori in collaboration with Materialogic → Add a make.
- Pictures by Mifactori, cc-by-4.0
- Disclaimer
Parts list …
Vito BoxBox
102.1 – Board 300x300mm
101.1 – Bead ⌀ ~16mm, ⌀ 4mm hole
098.1 – VITO box
091.1 – M4 rivet nut
089.1 – M6 nut
087.1 – M6 washer 20mm
086.1 – M4 countersunk bolt 20mm
080.1 – “Addi” board ~390x390mm
021.1 – Disk ⌀ ~120mm
018.1 – String 2000-2500mm
Note: This set has more than one model. Not all parts in the list are required to assemble each version.
Note: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
