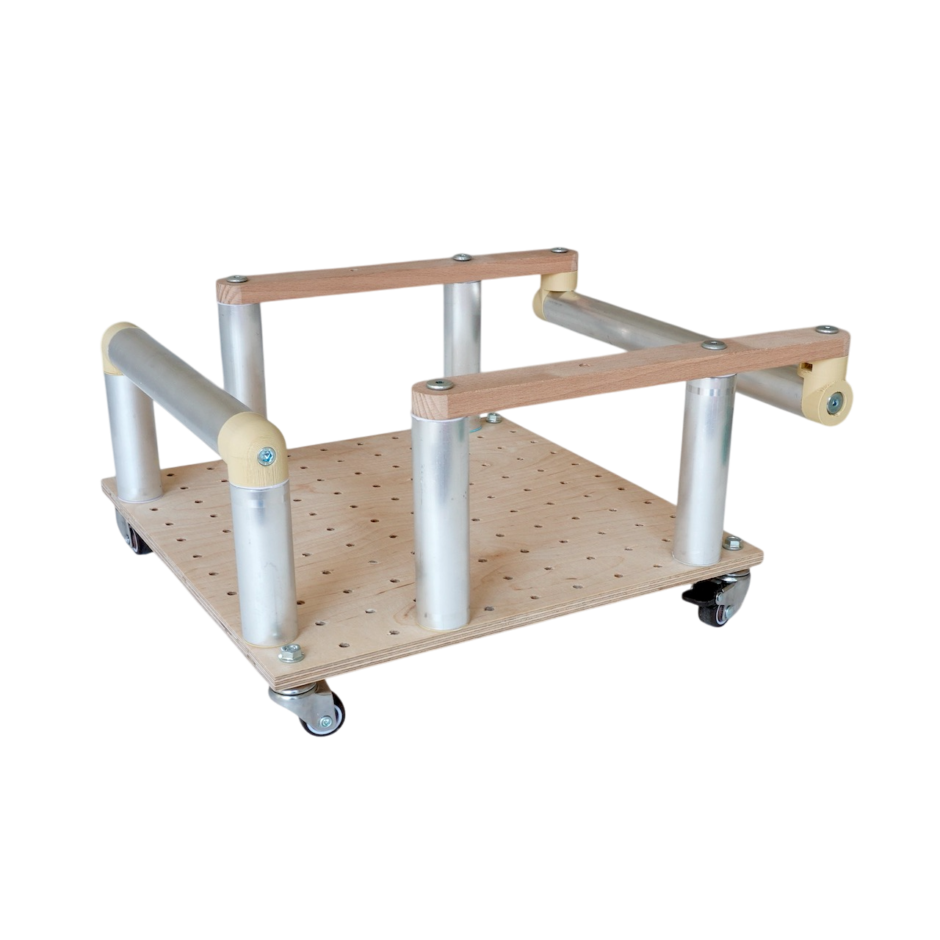

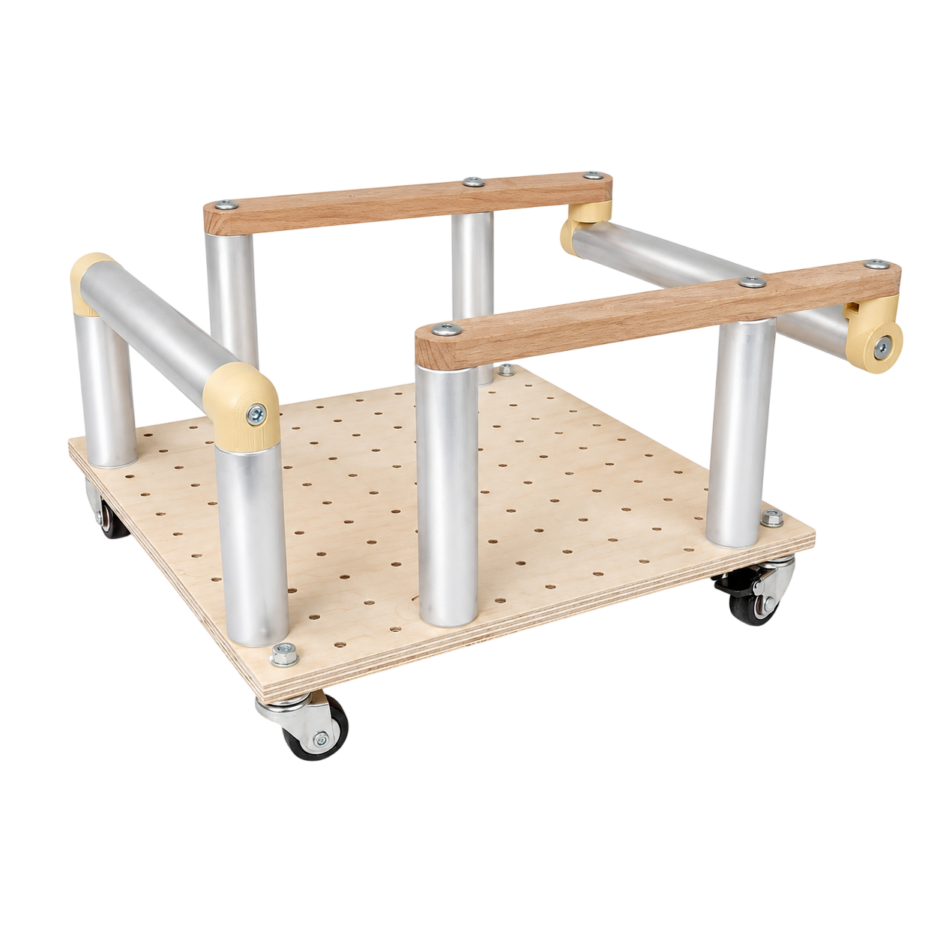

‘Rollade‘ is a small moveable platform that can be used for plants or as a bottom drawer for other Node World sets.
A Node World set
By Lars Zimmermann
Status: Available as product
Parts list
12 unique parts, in the →
Available to buy at
Globally available:
- from → Studio Mifactori (customized and made on demand, shipping from Germany)
- as → local make find a local local handyman to make it for you
Locally ⚑ available in:
- Sorry, no regional seller for this model yet. Sign up to our Newsletter to get notified when new sellers in your region are added. | Do you want to make and sell this? Add your store.
Design info
Set stats What does this mean?
- 1 prototype
- 0 makes
- 1 products
Context info
- This is a Node World set
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- Disclaimer
Parts list …
Rollade .nd42_
145.1 – Hinge/corner bracket, ⌀ 30mm, 6mm holes and insert thread
142.3 – Board 330x330mm, ⌀6mm holes
142.2 – Board 330x330mm, ⌀10mm holes
120.1 – Rail ~300mm
115.3 – 2 corner bracket modified Round +
115.2 – 2 corner bracket modified Round, M6, 15mm to edge
099.2 – wheel with break, M6 thread
099.1 – wheel, M6 thread
095.5 – 210mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”

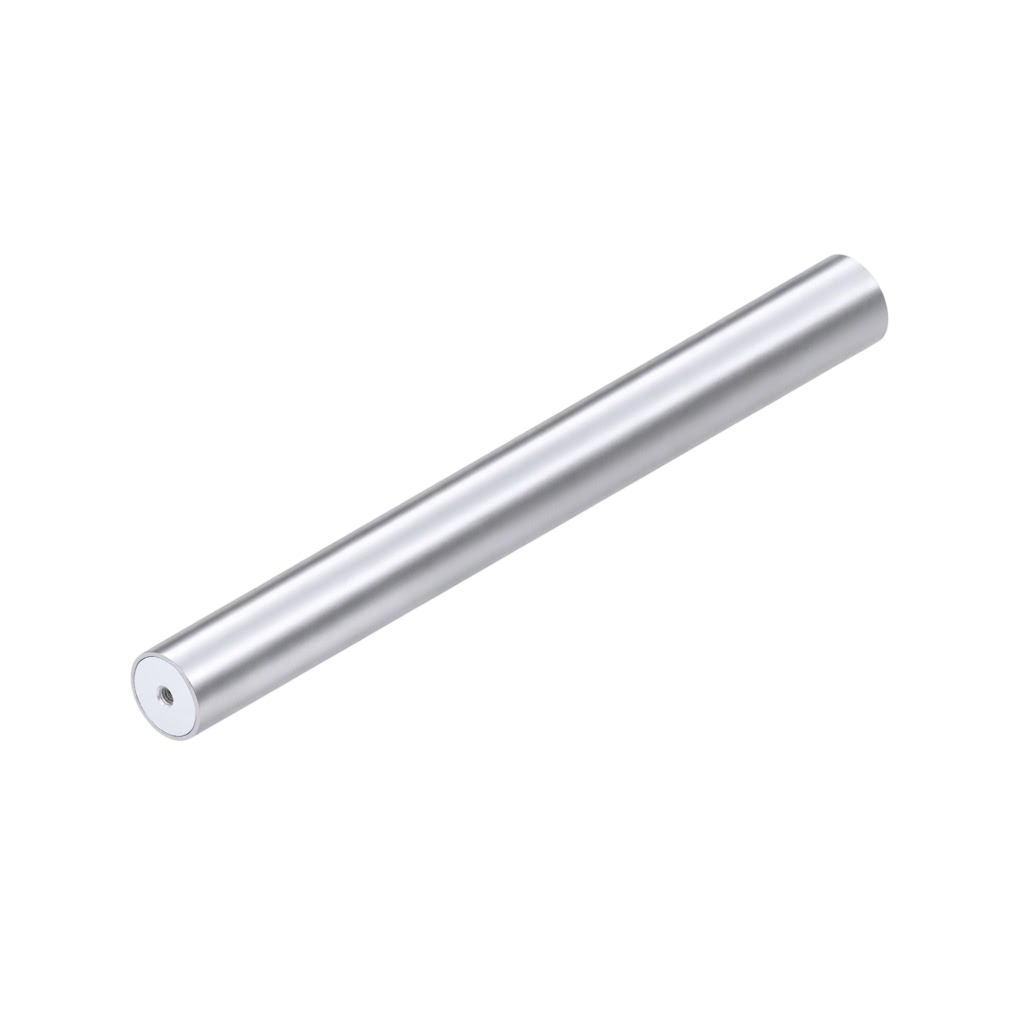

095.4 – 300mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”

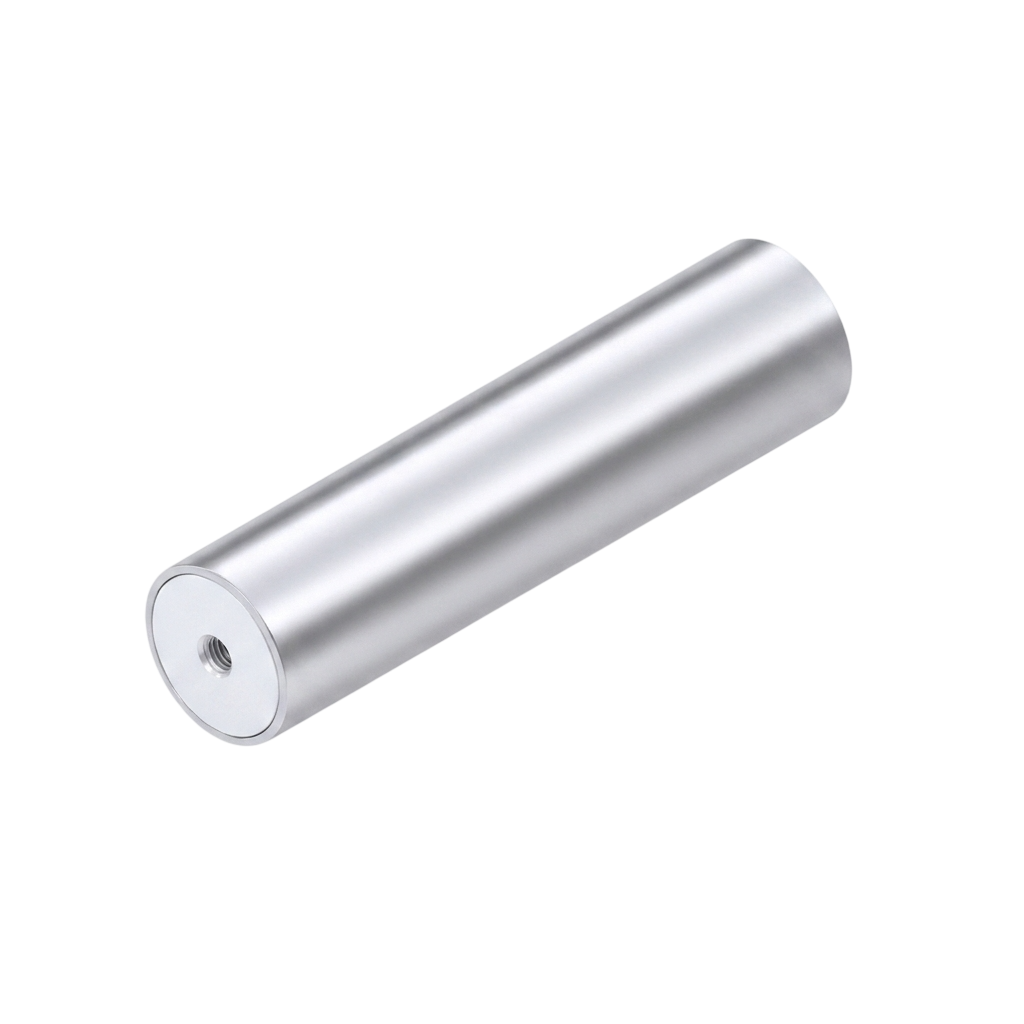

095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”

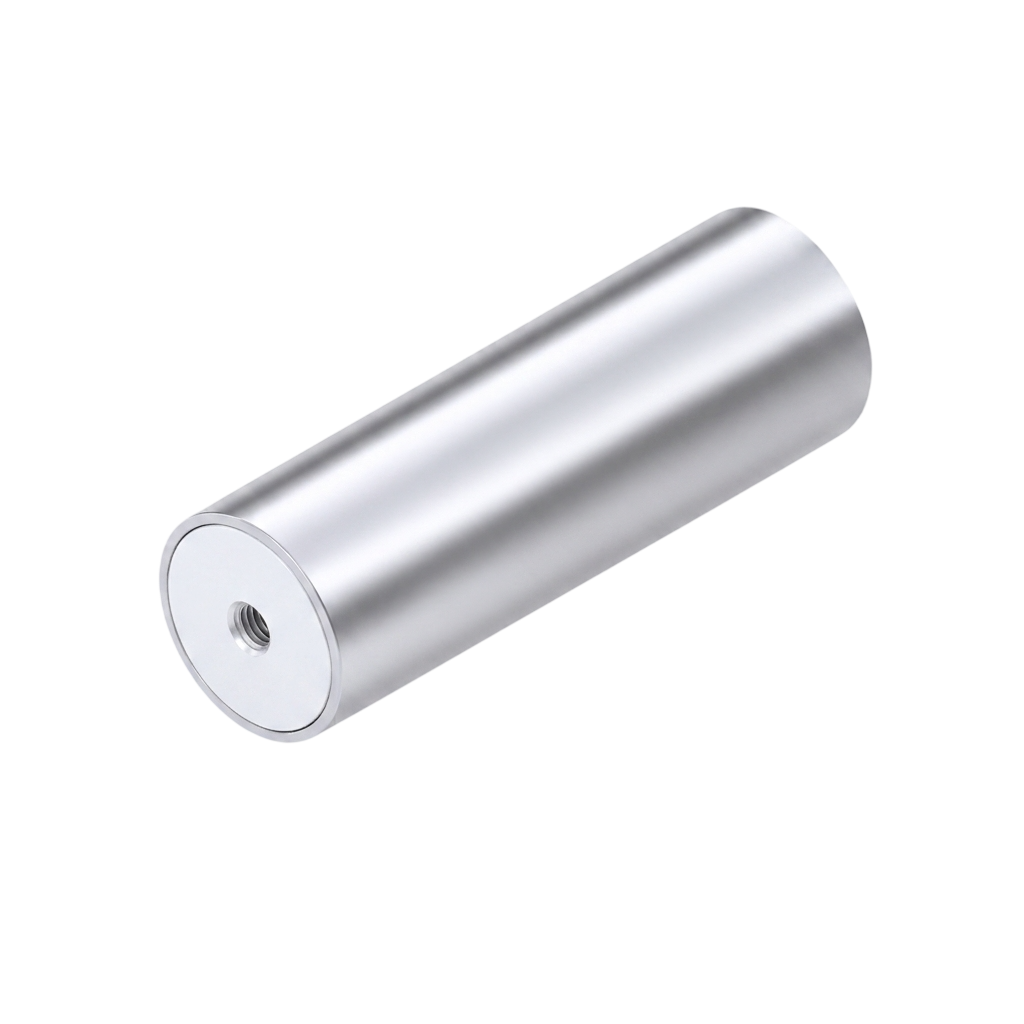

095.2 – 90mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”

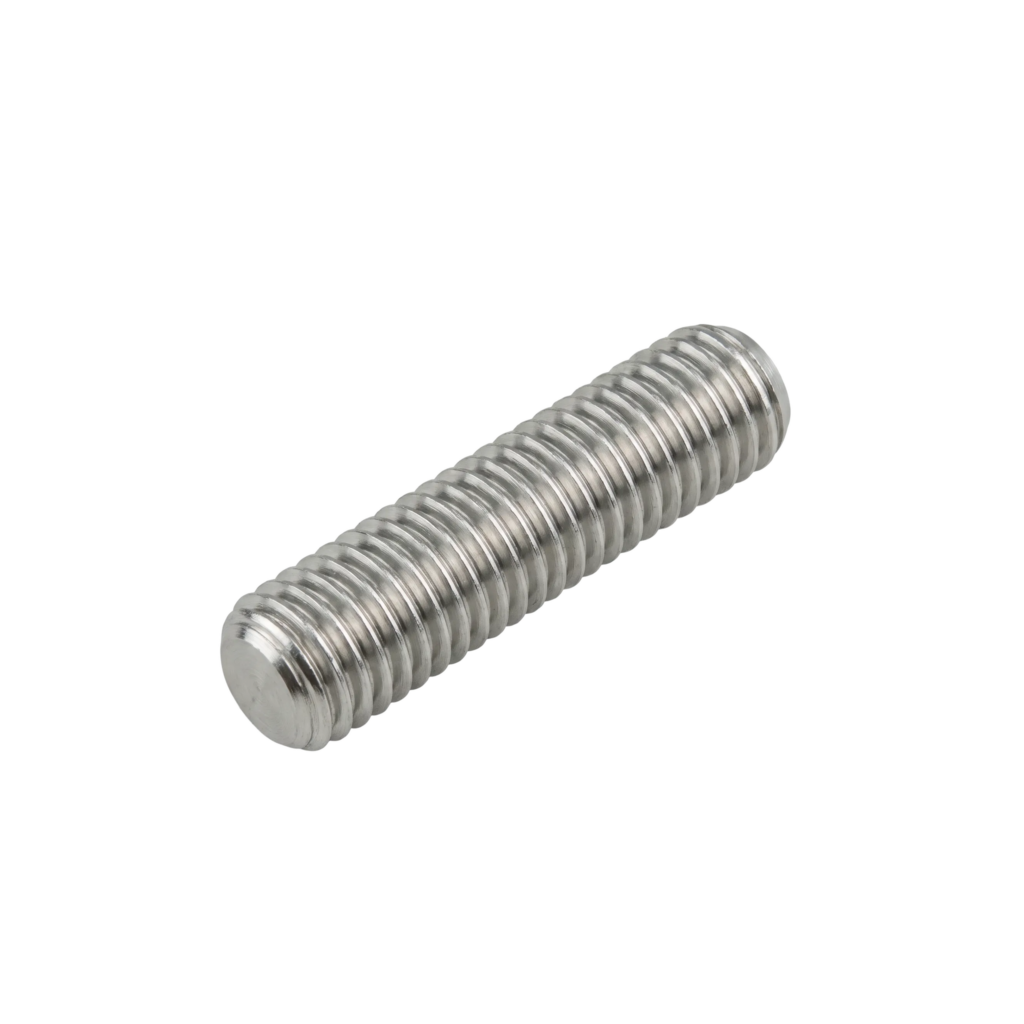

094.4 – M6 threaded rod 30mm
089.1 – M6 nut

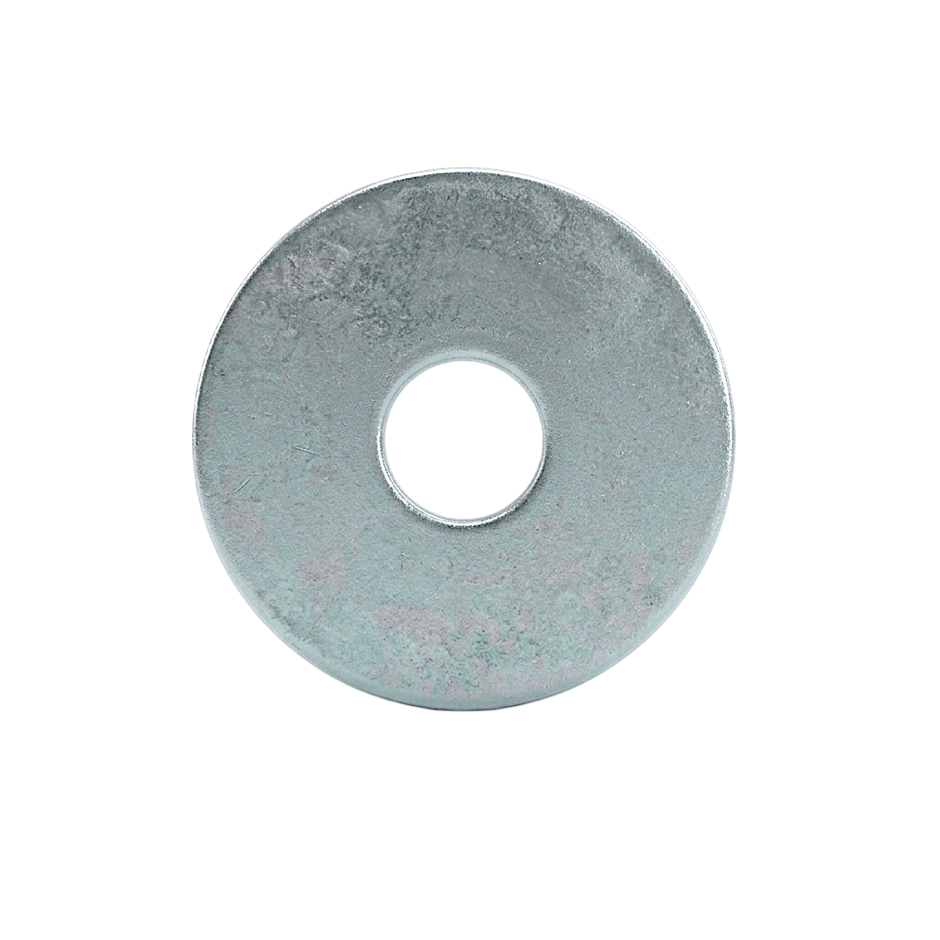

087.1 – M6 washer 20mm
082.1 – M6 bolt 50mm
030.1 – M6 bolt ~30mm
Note: This set has more than one model. Not all parts in the list are required to assemble each version.
Note: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
