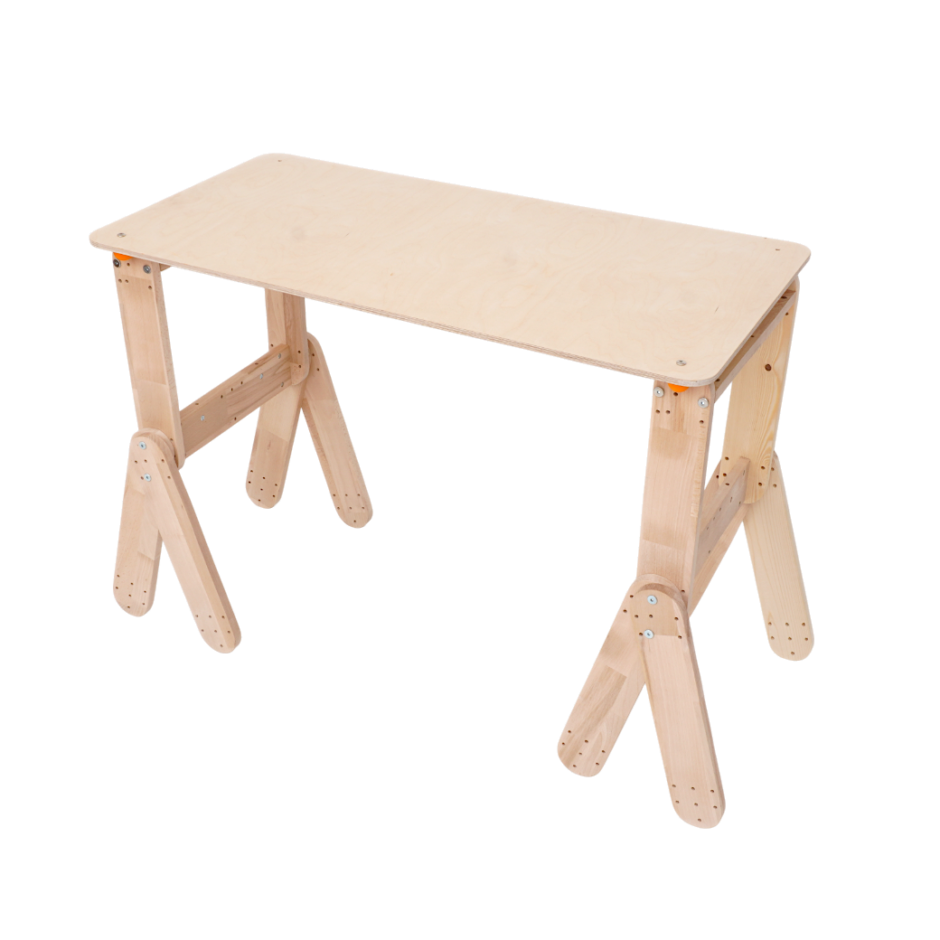

↑ Version 1, Strong Trestle, Table top unfixed | Version 2, Extra Strong Trestle, Table top fixed using bracket 115.1
‘Flappy Table‘ is a small modular office table.
Status: Rough prototype/concept
Design info
Set stats: 2 prototypes, 0 makes, 0 products info
Context info
- This set is part of the Flappy World ⤤
On parts and builds
- From the designers: “The table top in our prototype was a bit thin. The table would probably benefit from a thicker top”.
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- All makes shown in this post were created by the designer. → Add your make.
- Disclaimer
Universal parts
Flappy Table
Extra Strong Trestle (Subassembly)
Strong Trestle (Subassembly)
128.1 – Board ~990x510x21mm
127.1 – “Flappy beam” 360x80x18mm
126.1 – “Flap” board ~420x80x18mm
115.3 – 2 corner bracket modified Round +
115.2 – 2 corner bracket modified Round, M6, 15mm to edge
115.1 – 2 corner bracket, M6, 15mm to edge
089.1 – M6 nut
088.1 – M6 wing nut
082.3 – M6 bolt 90mm
082.2 – M6 bolt 70mm
082.1 – M6 bolt 50mm
072.1 – Spacer ~15mm high
034.1 – Spacer ~40mm high
030.1 – M6 bolt ~30mm
029.1 – M6 round nut
004.1 – Washer disk ⌀ 40mm
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
