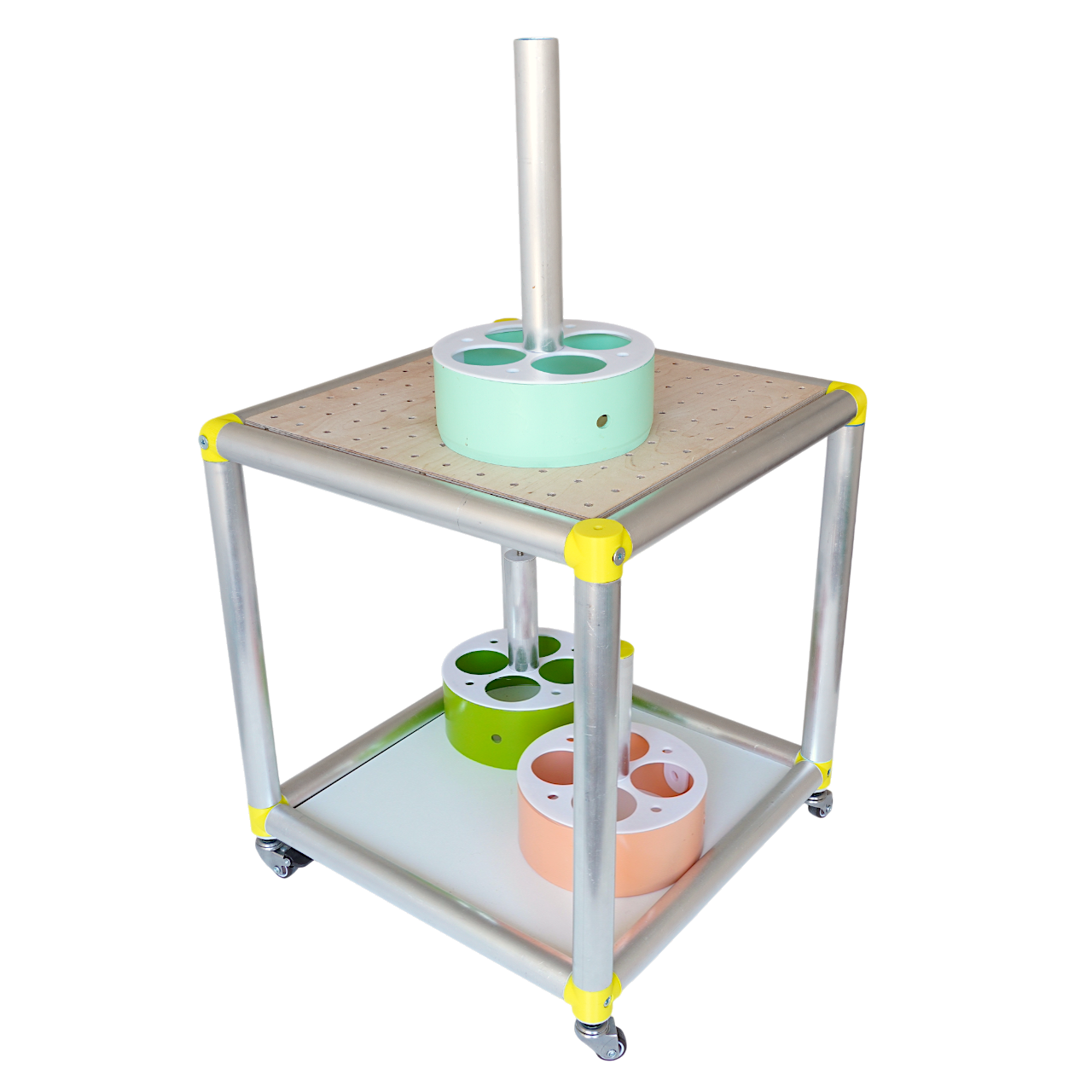

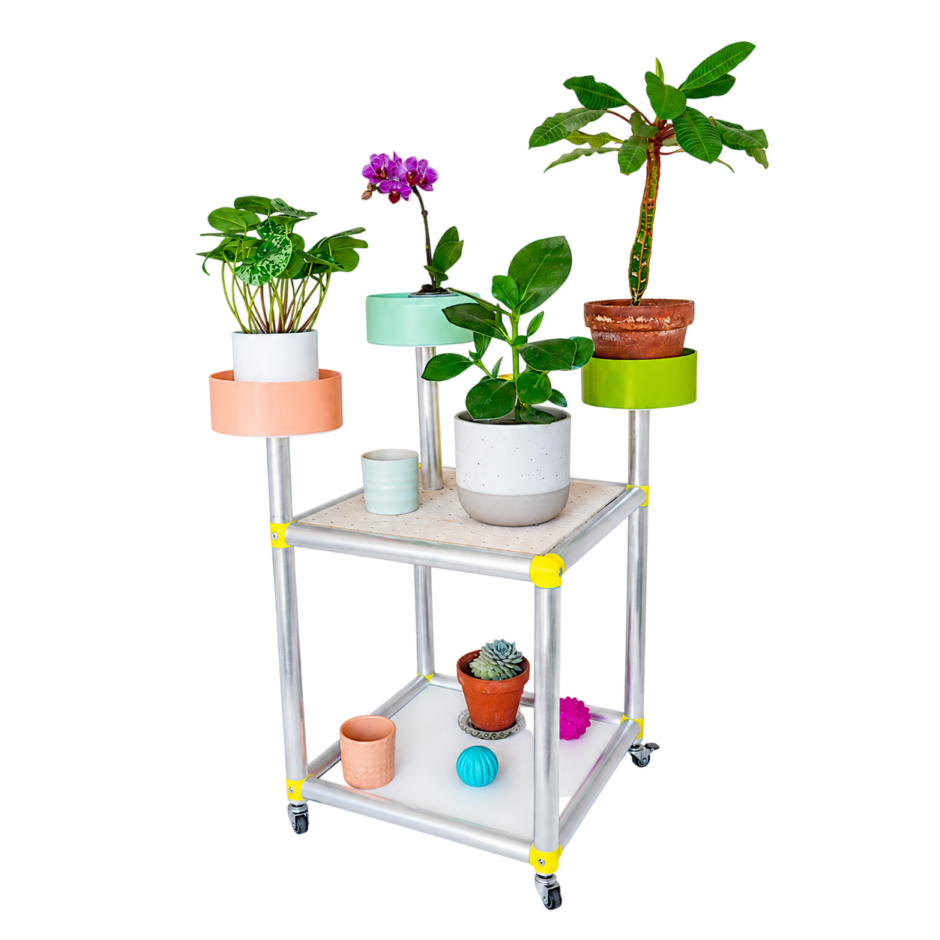

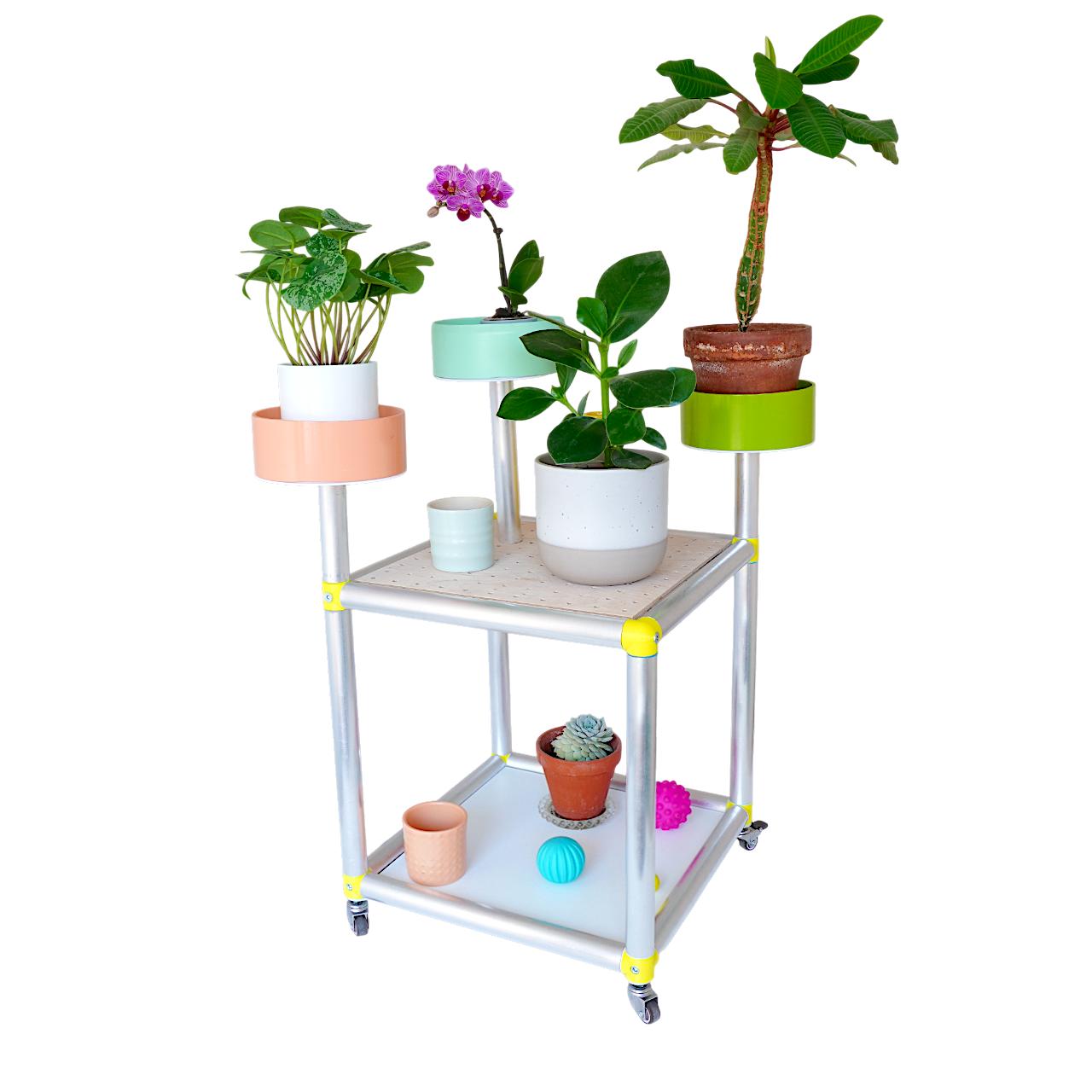

‘PlantNOiD’ is a sideboard with attachable platforms for plants. Customize it to suit your plants. With one, two, or three elevated platforms.
A Node World Set
By Lars Zimmermann
Status: Rough prototype/concept
Design info
Set stats What does this mean?
- 1 prototype
- 0 makes
- 1 products
Context info
- This is a Node World set
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- Disclaimer
Universal parts
PlantNOiD .nd91_
142.4 – Board 330x330mm, ⌀6mm holes
142.3 – Board 330x330mm, ⌀6mm holes
142.2 – Board 330x330mm, ⌀10mm holes
142.1 – Board 330x330mm, no holes
141.1 – Rail ~73x30x2mm
134.1 – 4 corner bracket Round
101.3 – Flexible bead ⌀ ~16mm, ⌀ 2mm hole
101.2 – Bead ⌀ ~16mm, ⌀ 6mm hole
101.1 – Bead ⌀ ~16mm, ⌀ 4mm hole
099.2 – wheel with break, M6 thread
099.1 – wheel, M6 thread
095.6 – 330mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.5 – 210mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.3 – 120mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
095.2 – 90mm rod with M6 insert threads, ⌀ ~30mm, “elephant rod”
094.4 – M6 threaded rod 30mm
082.1 – M6 bolt 50mm
072.1 – Spacer ~15mm high
048.2 – Tube 60mm ⌀152mm
048.1 – Tube 60mm ⌀152mm
038.1 – Insert for Tubes inner ⌀ 152mm
030.2 – M6 bolt 15mm
030.1 – M6 bolt ~30mm
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
