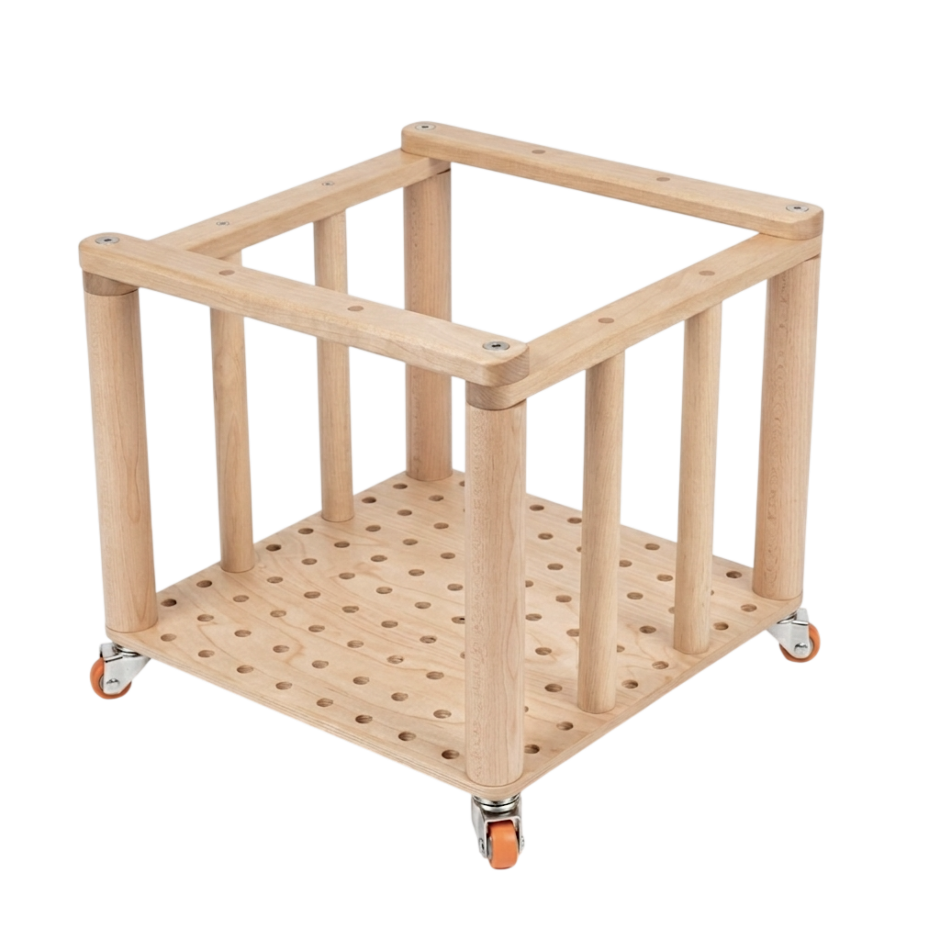

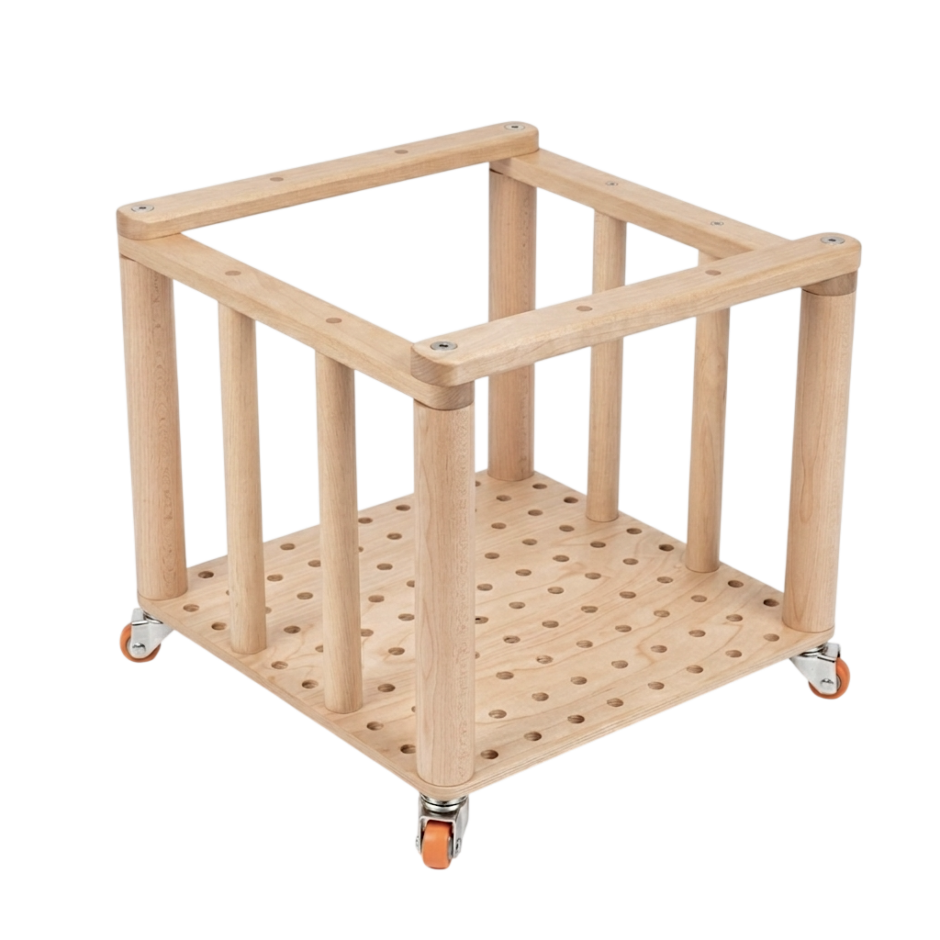

‘Tetri Basket‘ is a mobile storage box that keeps things where you need them.
By BĂ©la Raketa
Status: Rough prototype/concept
Design info
Set stats: 2 prototypes, 0 makes, 0 products info
Context info
- This set is part of the Tetri World
Meta info
- Please visit the original post by the designer to find even more information. Initial post backup pdf
- All makes shown in this post were created by the designer. â Add your make.
- Disclaimer
Universal parts
Tetri Basket
120.1 – Rail ~300mm
112.5 – 210mm rod with M4 insert threads
102.3 â Board ~300x300x16mm
102.2 â Board ~300x300x16mm â âTetri Boardâ
099.2 â wheel with break, M6 thread
099.1 â wheel, M6 thread
095.5 â 210mm rod with M6 insert threads, â ~30mm, “elephant rod”
086.1 â M4 countersunk bolt 20mm
082.1 â M6 bolt 50mm
072.1 – Spacer ~15mm high
069.1 – M4 washer 15mm
NOTE: This set has more than one model. Not all parts in the list are required to assemble each version.
NOTE: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
