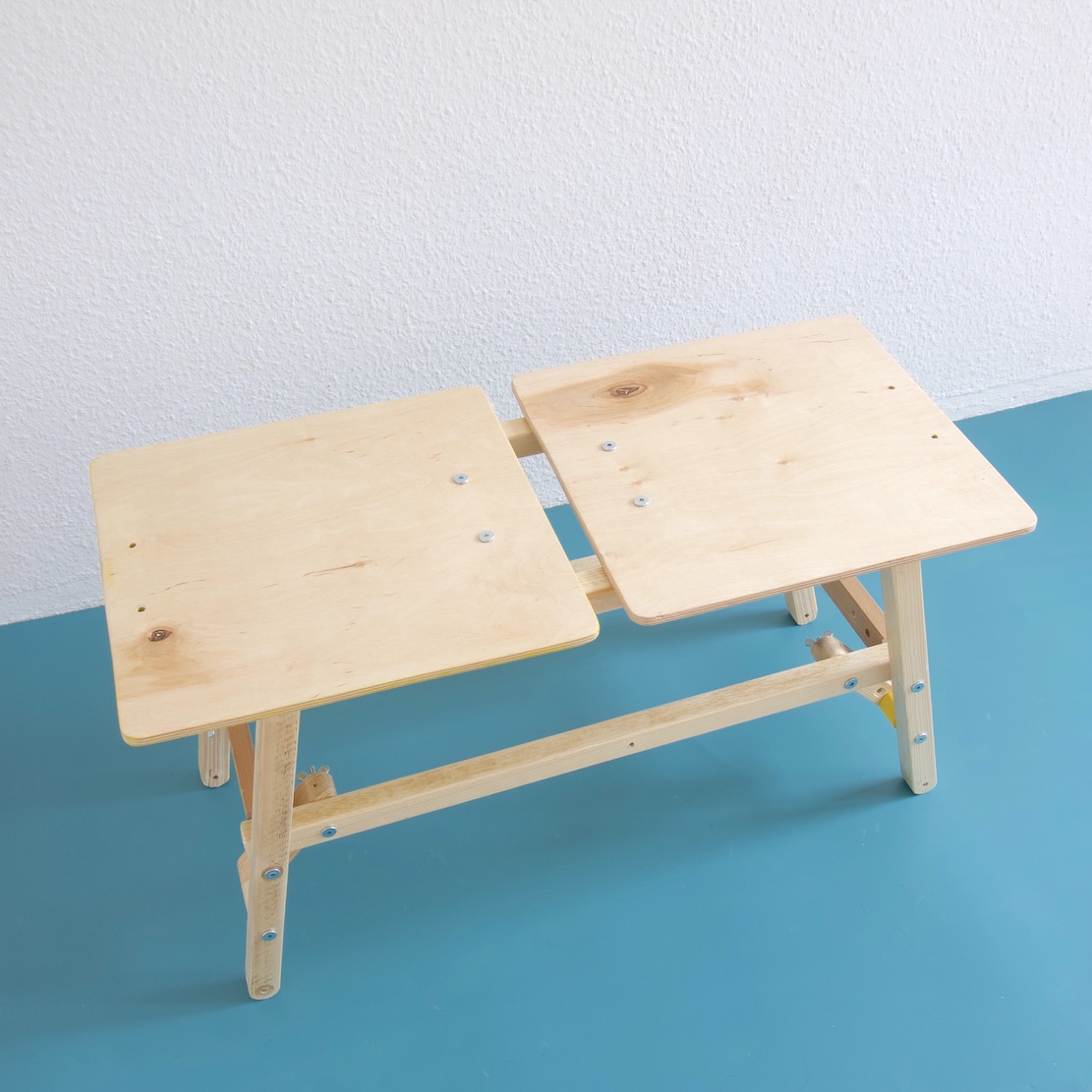

‘Bengi‘ is a simple double-seater bench. It consists of a strong frame and has two different seat solutions.
By Max Cuppens and Lars Zimmermann
Status: Rough PROTOTYPES
Parts list
click to open →
Available to buy at
Globally available:
- as → local make have a local handyman make it for you. Learn how here
Locally ⚑ available in:
-
Oh no… sorry, no store for this model added yet. Sign up to our Newsletter to get notified when new sellers in your region are added:
Ikego’s Newsletter
Hear about new models, sellers, opportunities and more. Join today.
Add your store → Want to produce and sell this model and be listed here as a seller? Great. Start here
Design info
3 prototypes, 0 makes, 0 products info
On parts & builds

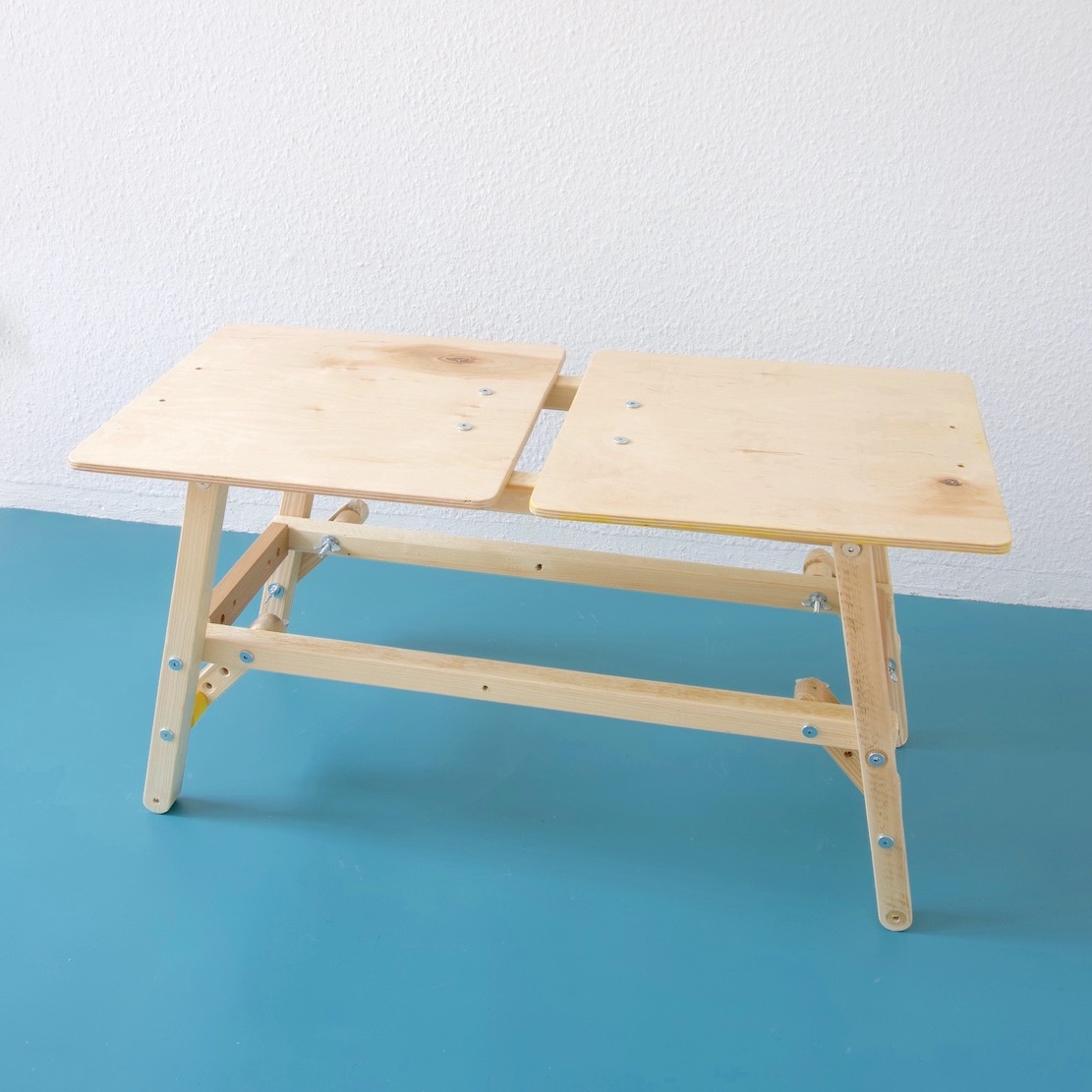

- As shown in the pictures you can make this bench using thinner or thicker material for the legs. If you go with extremely thin material its recommended to swap the beam (078.1) with a longer one (079.1). It’ll work equally well but give you a bigger standing surface.
- The parts list has a number of M6 bolts of different length. Which length you actually need will be decided by the thickness of the material used for the bars. In general many of the fasteners shared in the parts list can easily be replaced with others. Something you’ll see clearly, when you start building your version of Bengi.
- The spacer (072.1) needs to have the same thickness as the bars.
- In a way Bengi works as an alternate build of Addi the chair when it comes to the selection of parts.
click on image to enlarge and study assembly ↑
Meta info
- Visit the original post by the designer to learn more about this design and how to make it. Initial post backup.pdf
- All makes shown in this post were created by Mifactori. → Add a make.
- Pictures by Mifactori, cc-by-4.0
- Disclaimer
Parts list …
Bengi
088.1 – M6 wing nut
087.1 – M6 washer 20mm
083.1 – Rail 690mm
082.4 – M6 bolt 110mm
082.2 – M6 bolt 70mm
080.1 – “Addi” board ~390x390mm

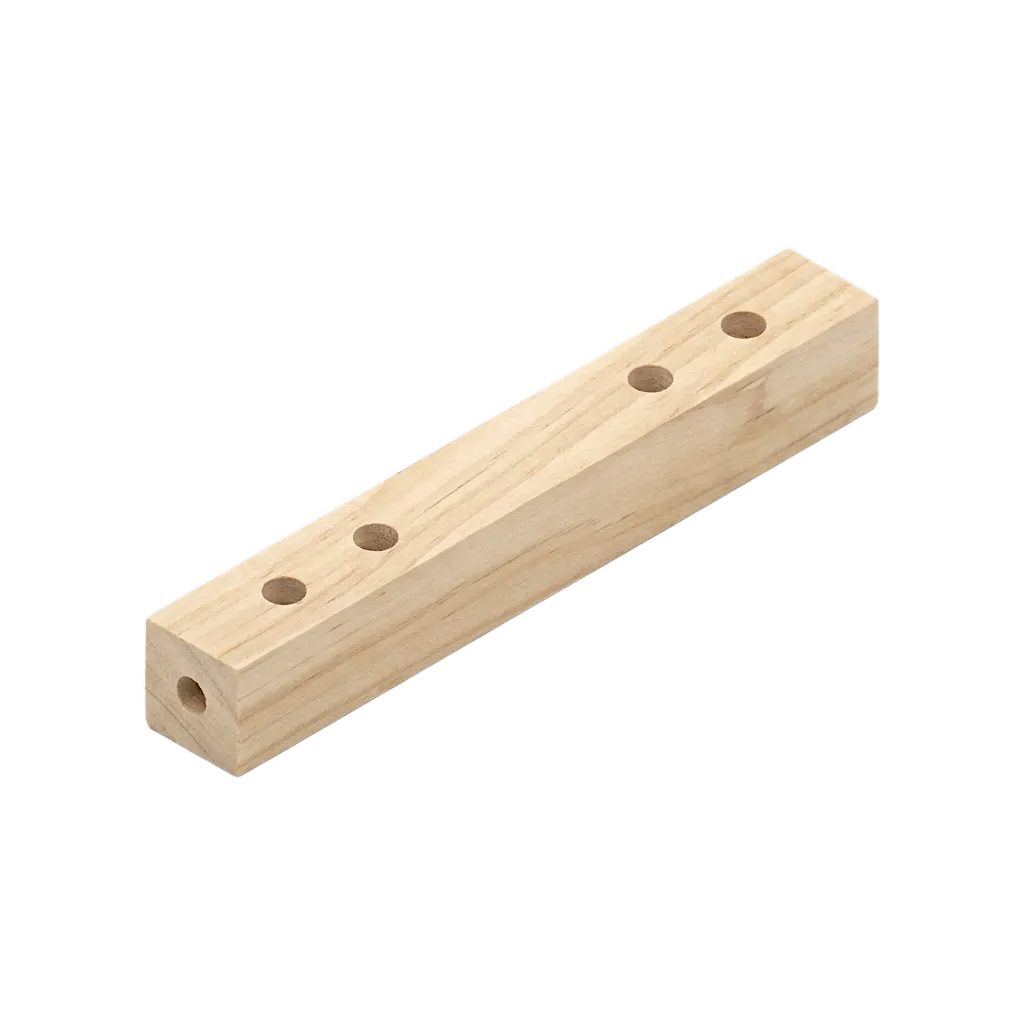

078.1 – Beam 210mm
076.1 – Rail 600mm
075.1 – “Addi rail” 420mm
073.1 – Rail 150mm
072.1 – Spacer ~15mm high
050.1 – Board 780x300x16mm
029.1 – M6 round nut
Note: This set has more than one model. Not all parts in the list are required to assemble each version.
Note: There is more than one way to assemble this model. Some parts are interchangeable. Not every part in the list ist required for each way.
