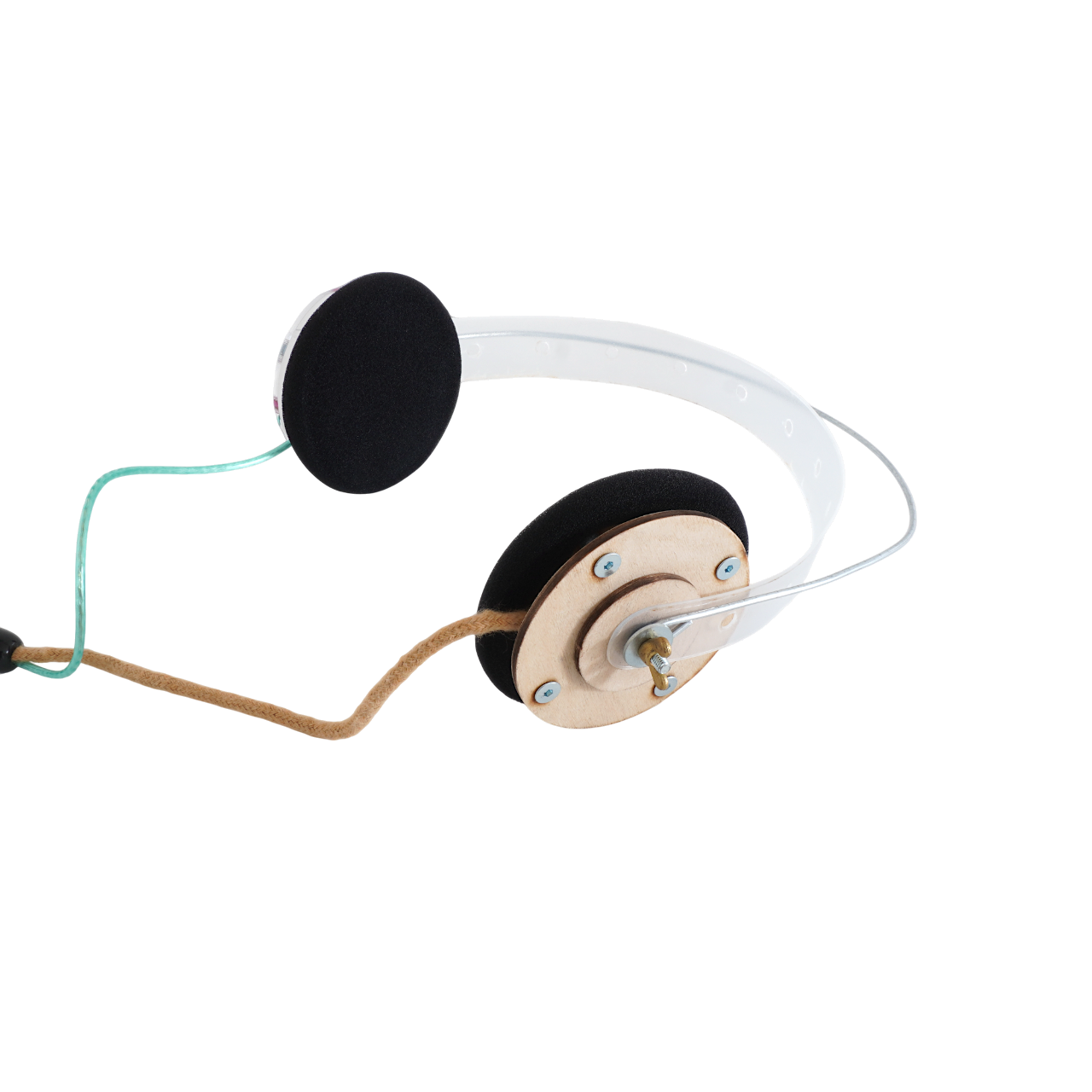

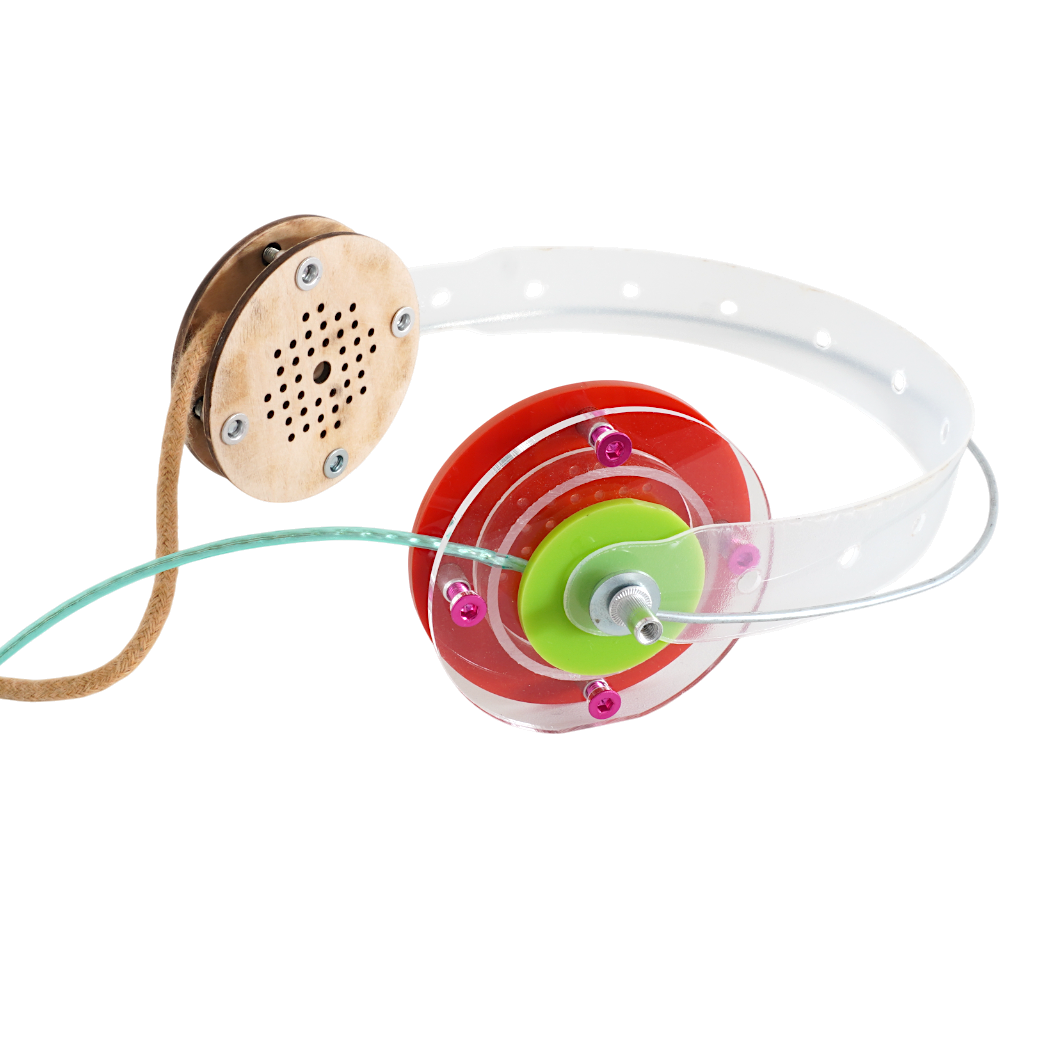

with cushions ↑ wood and red ↓

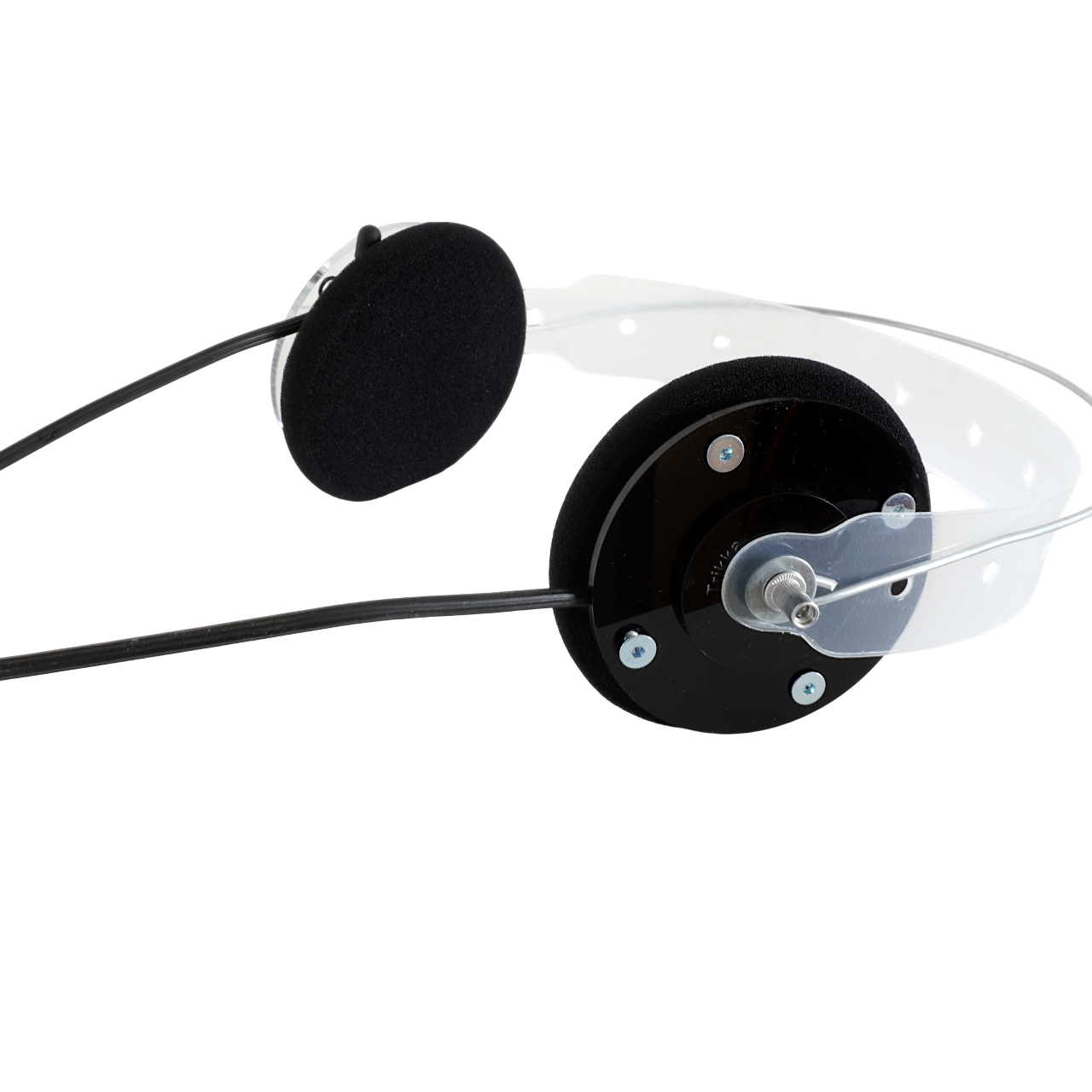

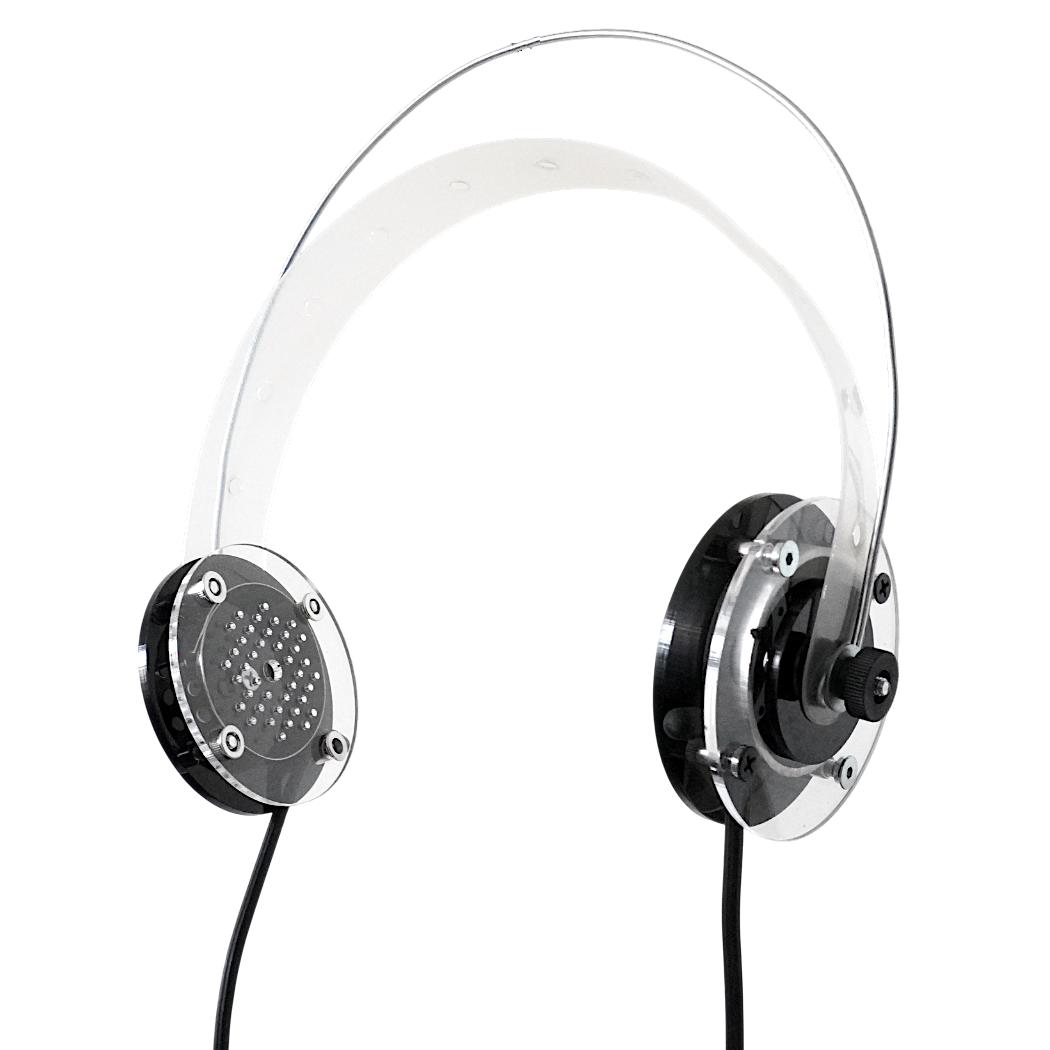

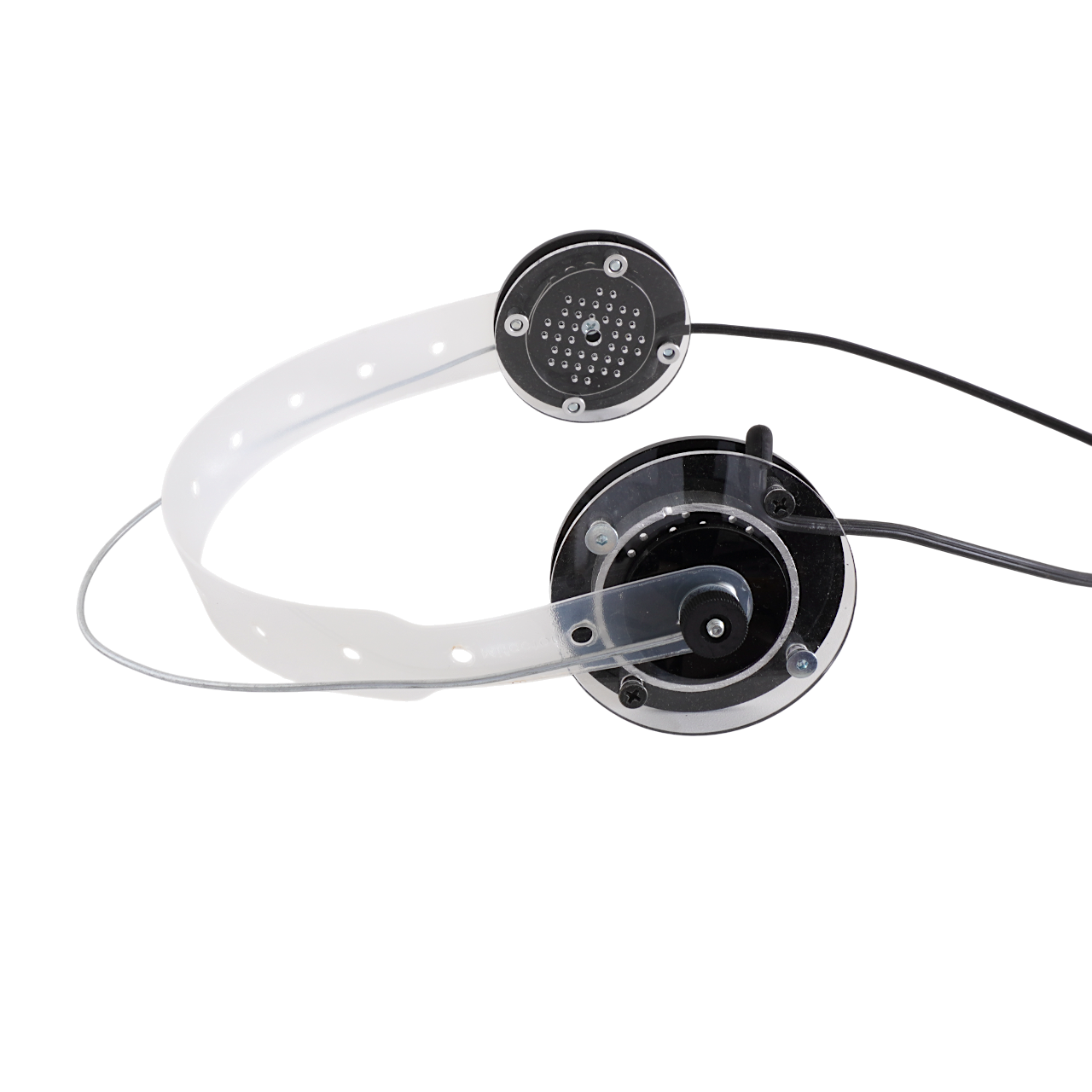

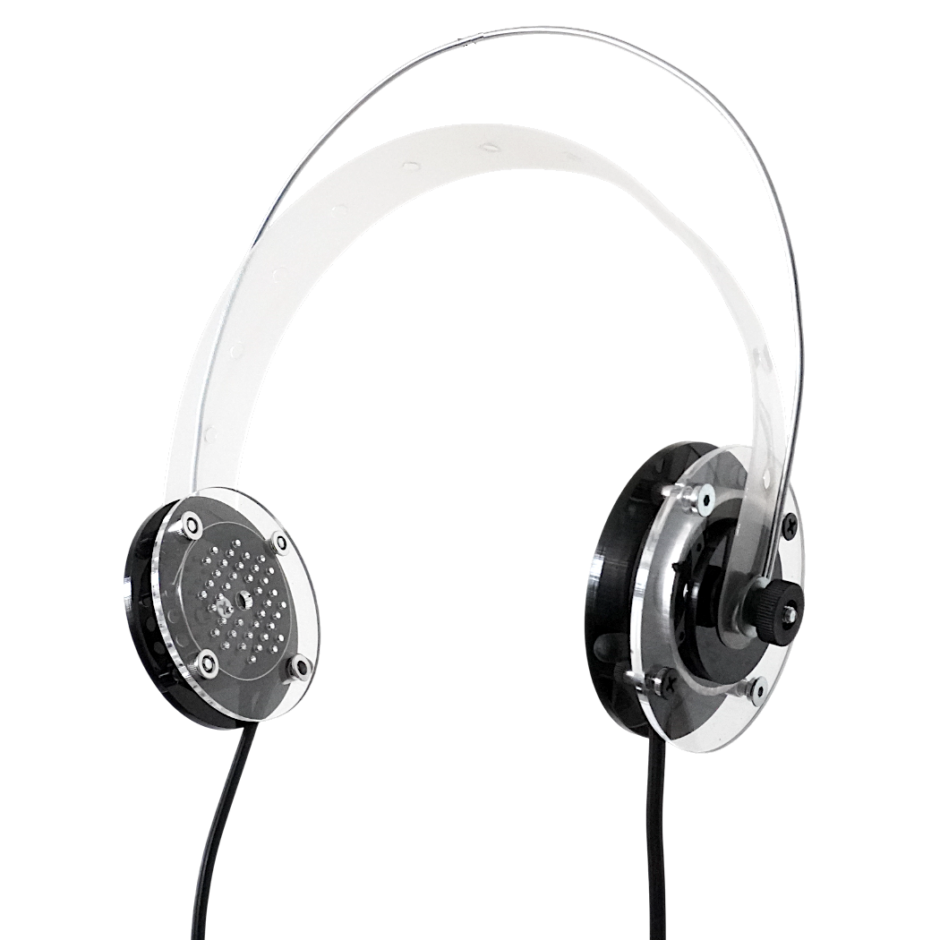

classic black ↓

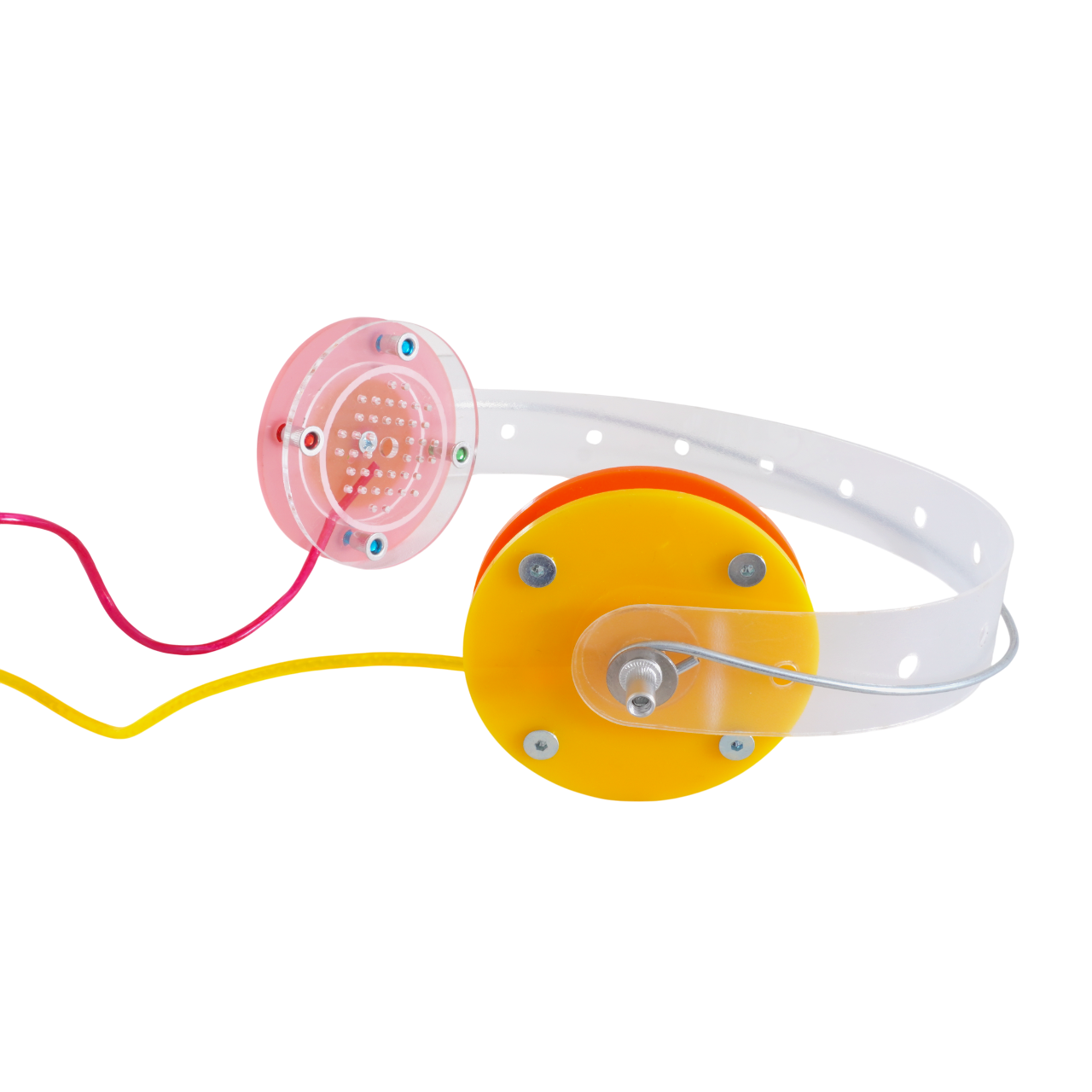

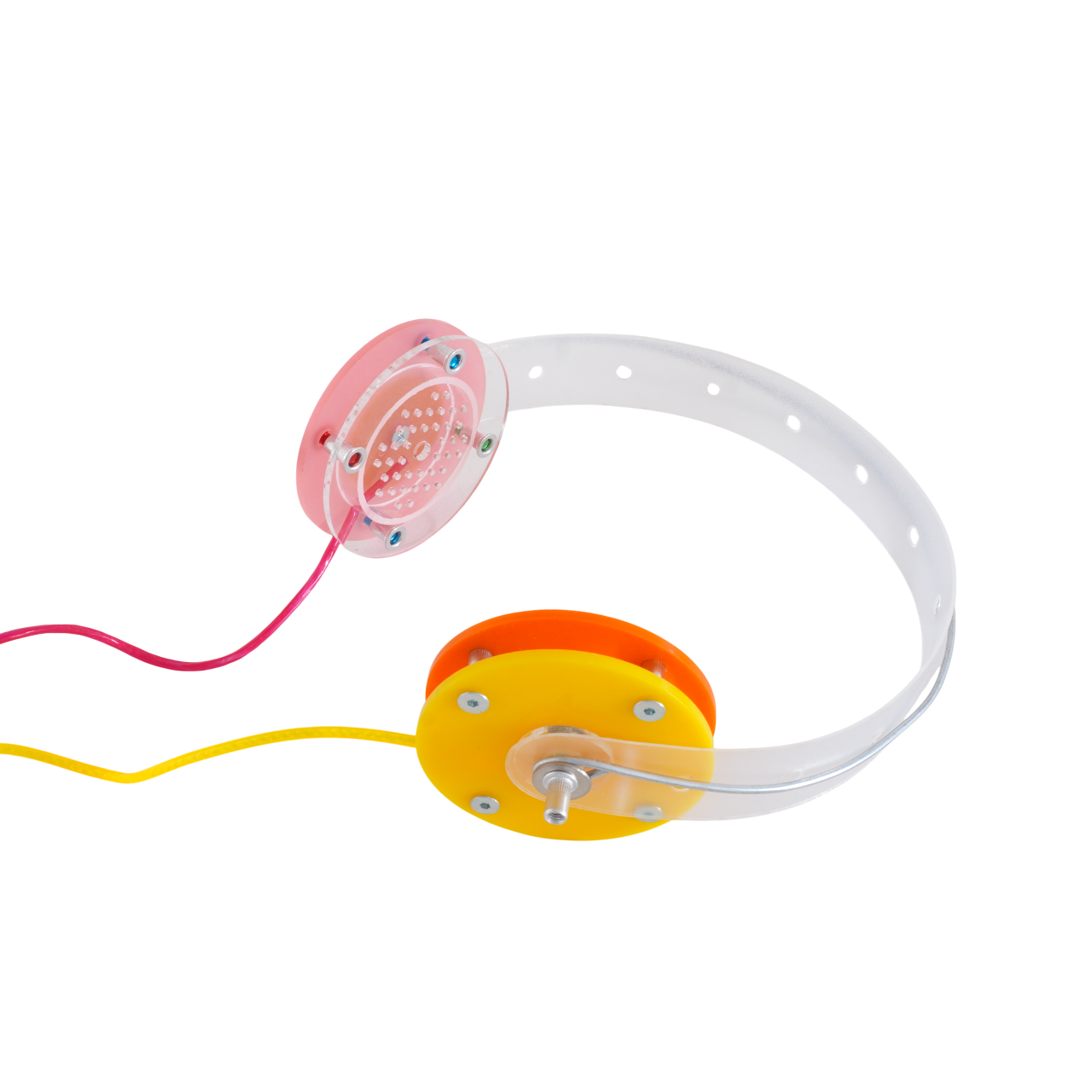

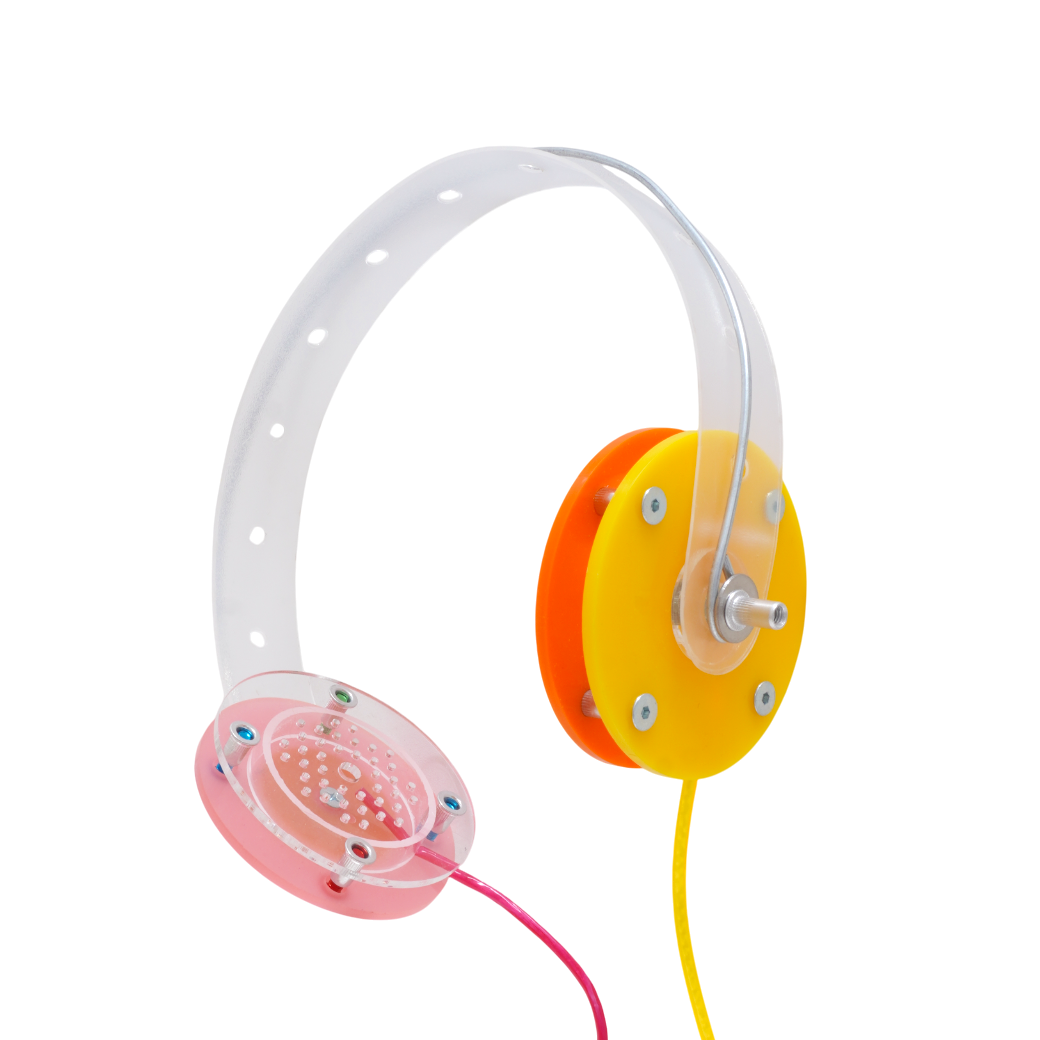

‘Trikka Headphones‘ is a headphone casing that fits standard off-the-shelf ⌀40mm headphone speakers.
Just prototypes for now
Parts list
10 unique parts, in the →
Available to buy at
Globally available:
- as → professional local make. Order it from a local handyman. Learn more
Locally ⚑ available in:
- Sorry, no regional seller for this model yet. Sign up to our Newsletter to get notified when new sellers in your region are added. | Do you want to make and sell this? Add your store.
Design info
Set stats What does this mean?
- 4 prototypes
- 0 makes
- 0 products
Context info
- This was one of the very very first things developed for the Ikego project. The proper documentation though was added much later.
On parts & builds

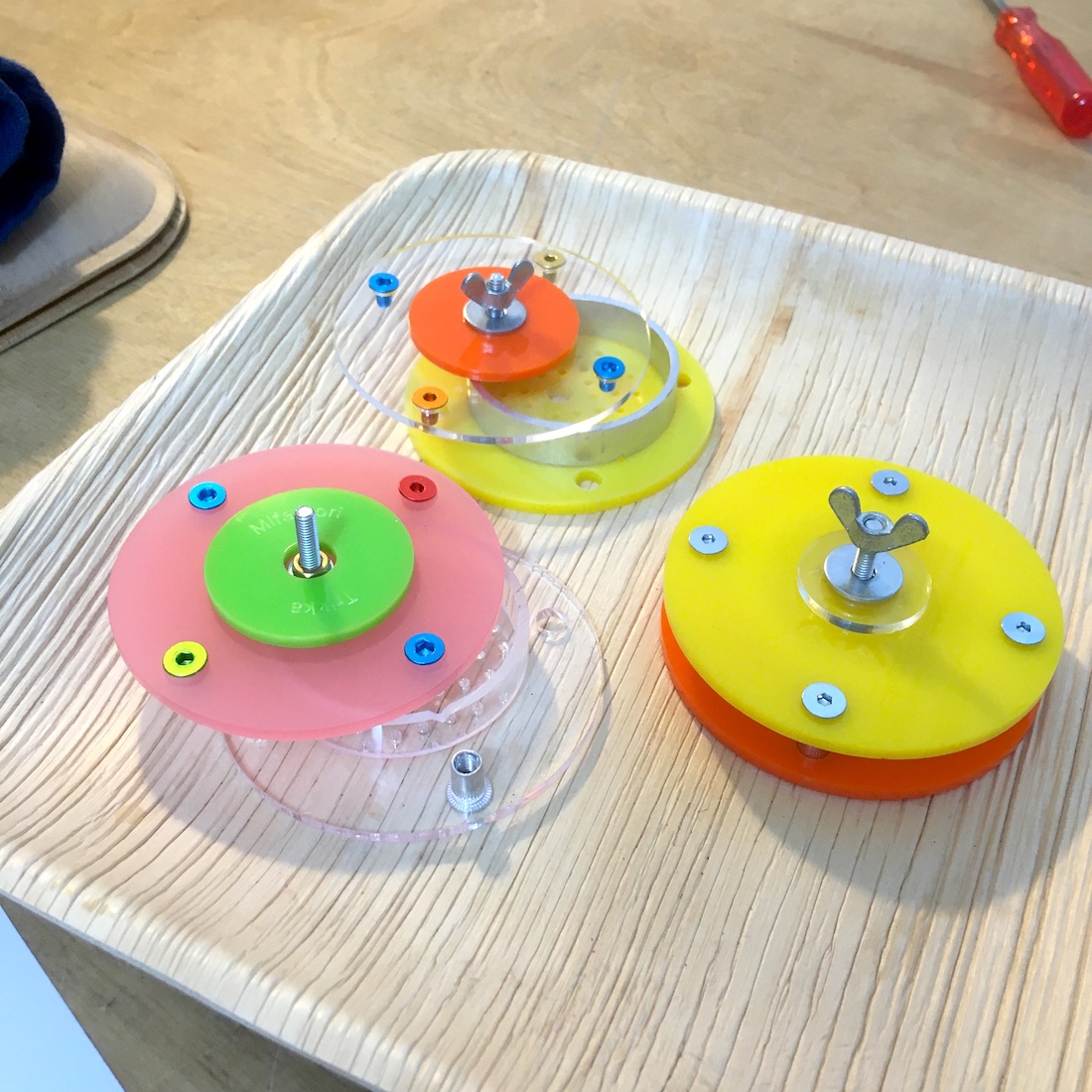

- ← Color studies
- This is only a headphone frame. The frame is designed so that standard commercially available speakers with a diameter of 40 mm can be inserted into it and then soldered with a cable. Soft material (some cardboard or foam) should be inserted behind the speakers to anchor them firmly in the frame and also improve the sound quality.
- The cushions in the pictures are standard cushions that can be ordered in this size. For a final product version of the headphones, you could offer your own, slightly softer and perhaps coloured versions within Ikego’s tolerance.
- The core parts of these casings are flat! They can be produced with a laser cutter, woodworking tools or even simple scissors.
- According to the Ikego catalogue, the outer wire is 2 mm thick. In all of our prototypes, it was so strong that it could be bent, but also had enough strength of its own to exert just the right amount of pressure to press the headphone cups onto the ears.
- This is how the outer side goes together:
